Timer; 7A @ 250VAC; 0.5 to 5; On Delay; SPDT; 200 to 240VAC; 1.3W @ 120VAC

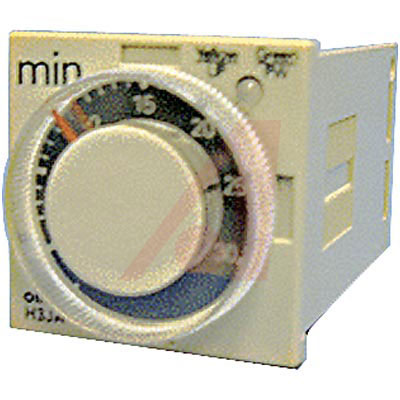

**H3JA Series.** Time limit, ON-delay, operation with automatic resetting. 36 × 36 mm, fits standard 8-pin sockets. Wide choice of supply voltages 24, 100 to 120, 200 to 240 VAC, 12, 24 VDC. LED indication for power and output status. Large transparent setting knob. Conforms to UL and CSA, and meets CE marking requirements. **Features:**
* On-Delay Time Limit Operation with Automatic Reset
* DIN Size 36 mm × 36 mm Fits Standard 8-Pin Socket
* Wide Time Range Offering 10, 30, 60 Sec./10, 30, 60 Min./3 Hours
* Dual LED Indication for Power and Output Status **Specifications:**
* Supply Voltage: 100-120 VAC/200-240 VAC
* Control Output: SPDT — 7 A @ 250 VAC H3JA-8A, DPDT — 5 A @ 250 VAC H3JA-8C
* UL, CSA, CE Approved
