H7ET-NV-B概述

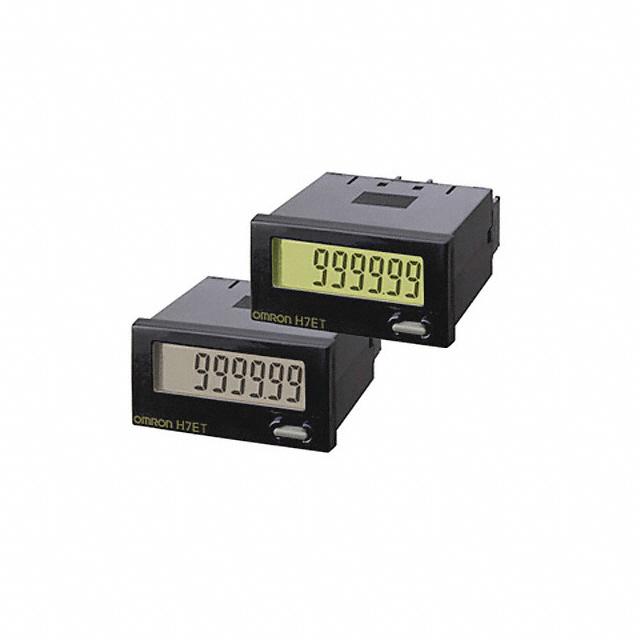

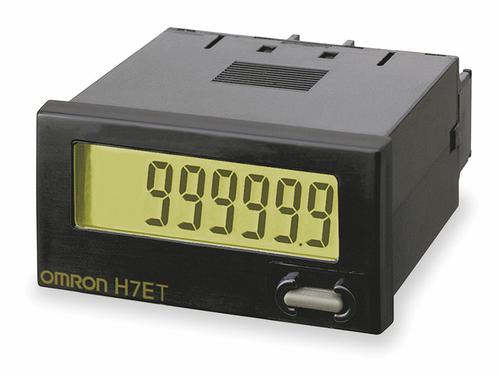

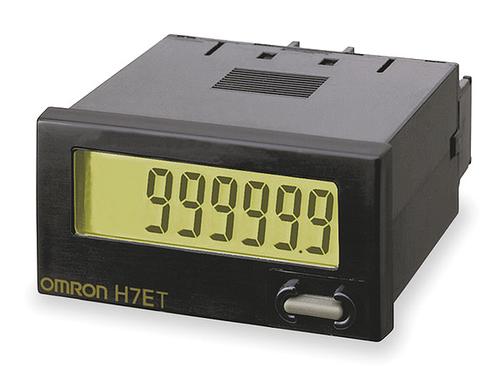

OMRON INDUSTRIAL AUTOMATION  H7ET-NV-B  面板安装定时器, 24 VDC, 0 s, 999999.9 h, 22.2 mm, 45 mm

The is a black 7-digit flush-mount Miniature Time Counter with PNP/NPN universal DC voltage input, count input/reset signal and voltage input method. This has 100MR minimum at 500VDC between current-carrying terminals and exposed non-current-carrying metal parts insulation resistance. The time counter features 7-segment LCD and black body. The self-powered time counter features 20ms external reset minimum input signal and key protection switch.

.
Screw terminals external connection method
.
Quadrature counter input modes
.
External reset/manual reset system
.
4.5kV Impulse withstand voltage
.
IP20 Protection rating
.
-10 to 55°C Operating temperature range

An insulation sheet has been inserted to maintain the quality of the Totalizer in the event of a long period without use. Be sure to remove this sheet before attempting to use the product.

H7ET-NV-B中文资料参数规格
技术参数

电源电压DC 24.0V max

功耗 300 mW

工作温度Max 55 ℃

工作温度Min -10 ℃

电源电压 24 VDC

电源电压Max 24 VDC

封装参数

安装方式 Panel, Screw Terminals

封装 Black

外形尺寸

长度 48.5 mm

宽度 44.8 mm

高度 37.0 mm

封装 Black

物理参数

重量 65 g

工作温度 -10℃ ~ 55℃

其他

产品生命周期 Active

制造应用 Automation & Process Control, 时钟与计时, Clock & Timing, 自动化与过程控制, Automation & Process Control, Clock & Timing

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

数据手册

在线购买H7ET-NV-B
型号: H7ET-NV-B
制造商: Omron 欧姆龙
描述:OMRON INDUSTRIAL AUTOMATION  H7ET-NV-B  面板安装定时器, 24 VDC, 0 s, 999999.9 h, 22.2 mm, 45 mm
