ISF15ACP4

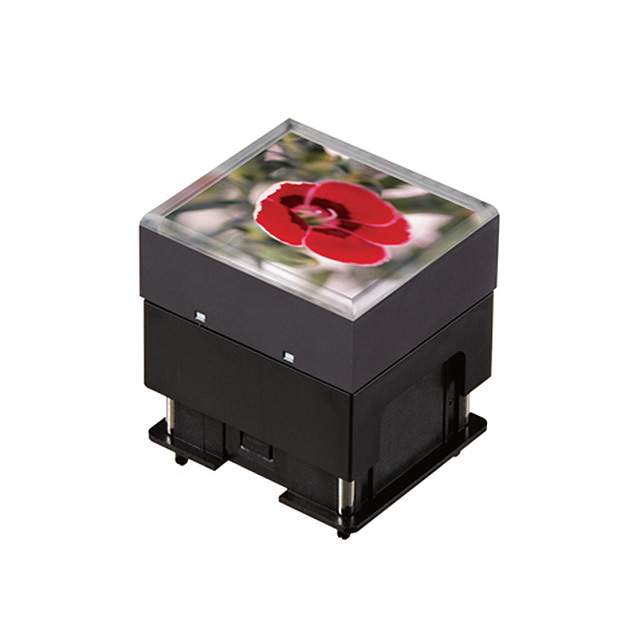

ISF15ACP4图片1
ISF15ACP4图片2
ISF15ACP4图片3
ISF15ACP4概述

Switch Push Button N.O. SPST Rectangular OLED 0.1A 12VDC Momentary Contact PC Pins Thru-Hole

is manufactured by Switches and is categorized in the Programmable Display Switches category. ISF15ACP4 is described as OLED 96X64 COLOR SW. Perfect Parts is a supplier of Switches and other Electromechanicals.


得捷:
SW PROG DISPLAY SPST-NO 0.1A 12V


贸泽:
Programmable Switches IS OLED 96X64 COLOR SWITCH


艾睿:
Ideal for quick switching situations this ISF15ACP4 push button switch manufactured from NKK Switches is a must. This device has a maximum current rating of 0.1 A @ 12VDC. It has a SPST configuration. This push switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The ISF15ACP4 push switch has a PC pin termination style. The maximum DC voltage rating is 12 VDC. This product is 20.59 mm long, 23 mm tall and 23.13 mm deep.


Verical:
Switch Push Button N.O. SPST Rectangular OLED 0.1A 12VDC Momentary Contact PC Pins Thru-Hole


ISF15ACP4中文资料参数规格
技术参数

额定电流Max 0.1A @12VDC

工作温度Max 70 ℃

工作温度Min -20 ℃

接触电阻Max 200 mΩ

电源电压 2.4VDC ~ 3.5VDC

封装参数

安装方式 Through Hole

外形尺寸

长度 20.59 mm

高度 23 mm

物理参数

触点材质 Gold

工作温度 -20℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

ISF15ACP4引脚图与封装图
ISF15ACP4引脚图
ISF15ACP4封装图
ISF15ACP4封装焊盘图
在线购买ISF15ACP4
型号: ISF15ACP4
制造商: NKK 日本长野
描述:Switch Push Button N.O. SPST Rectangular OLED 0.1A 12VDC Momentary Contact PC Pins Thru-Hole
