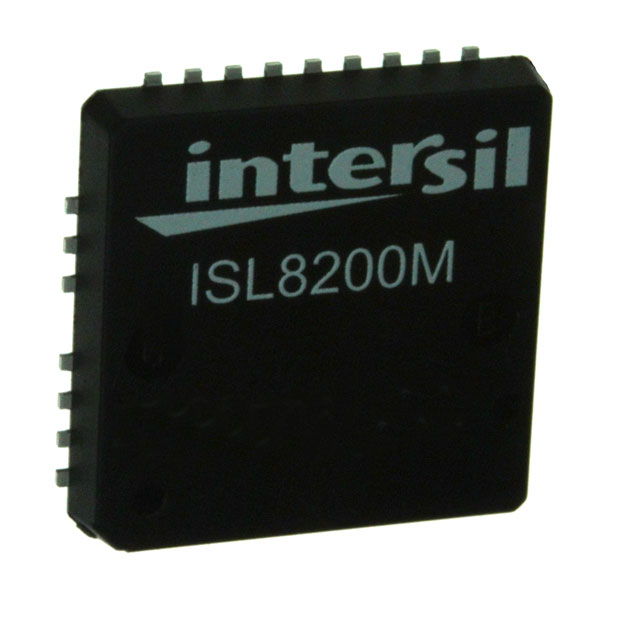

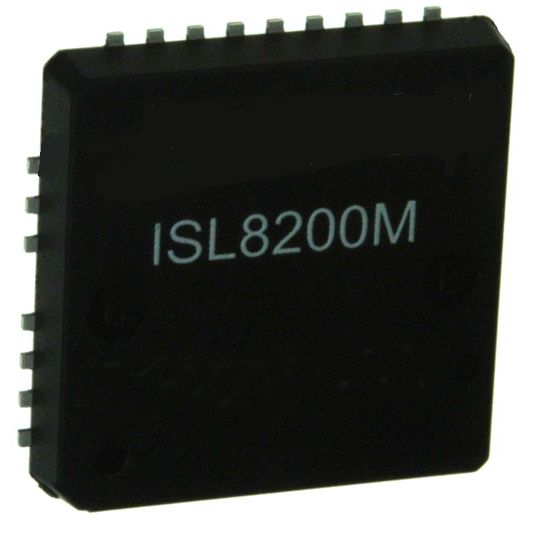

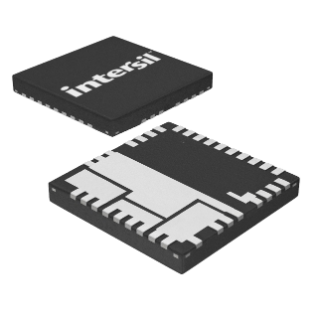

ISL8200MIRZ

INTERSIL  ISL8200MIRZ  芯片, 直流/直流模块, 20V输入, 10A, 1.5MHZ, 23QFN

The ISL8200M is a simple and easy to use high power, current-sharing DCDC power module for

DatacomTelecomFPGA power hungry applications. All that is needed is the ISL8200M, a few passive components and one VOUTsetting resistor to have a complete 10A design ready for market.

Features

• Complete Switch Mode Power Supply in One Package

• Patented Current Share Architecture Reduces Layout Sensitivity When Modules are Paralleled

• Programmable Phase Shift 1 to 6 phase

• Extremely Low Profile 2.2mm height

• Input Voltage Range +3.0 V to +20V at 10A, Current Share up to 60A

• A Single Resistor Sets VOUTfrom +0.6V to +6V

• Output Overvoltage, Overcurrent and Over-Temperature, Built-in Protection and Undervoltage indication
