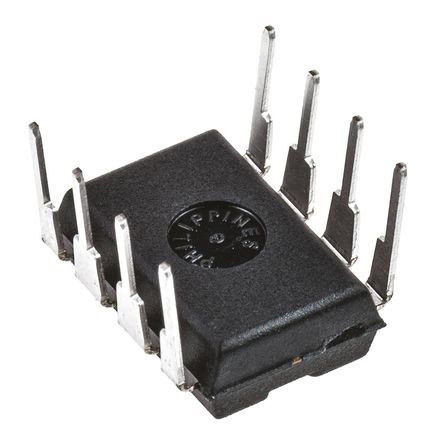

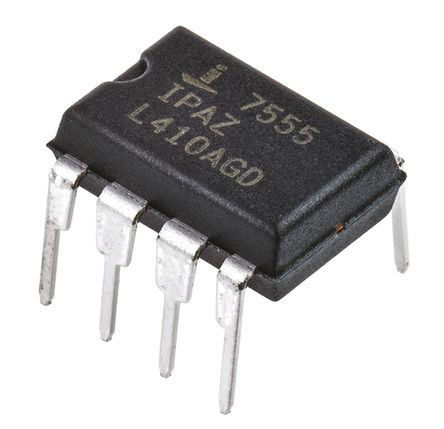

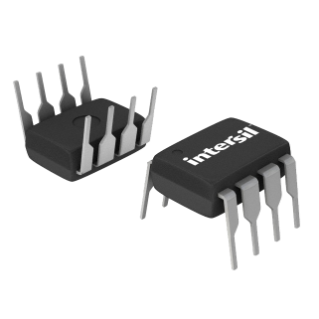

INTERSIL ICM7242IPAZ 芯片, 定时器/计数器 CMOS
The is a CMOS Timer/Counter Circuit consists of an RC oscillator followed by an 8-bit binary counter. It will replace the 2242 in most applications, with a significant reduction in the number of external components. Three outputs are provided. They are the oscillator output and buffered outputs from the first and eighth counters.
- .
- Timing from microseconds to days
- .
- Cascadable
- .
- Monostable or astable operation
- .
- Low supply current of 115µA at 5V
ESD sensitive device, take proper precaution while handling the device.
频率 13 MHz
电源电压DC 16.0 V, 16.0 V max
额定电流 800 A
供电电流 340 µA
针脚数 8
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2V ~ 16V
电源电压Max 16 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 10.16 mm
宽度 8.25 mm
高度 4.95 mm
封装 DIP-8
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ICM7242IPAZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
NE555P 德州仪器 | 功能相似 | ICM7242IPAZ和NE555P的区别 |
LM555CN 飞兆/仙童 | 功能相似 | ICM7242IPAZ和LM555CN的区别 |
LMC555CN/NOPB 德州仪器 | 功能相似 | ICM7242IPAZ和LMC555CN/NOPB的区别 |
