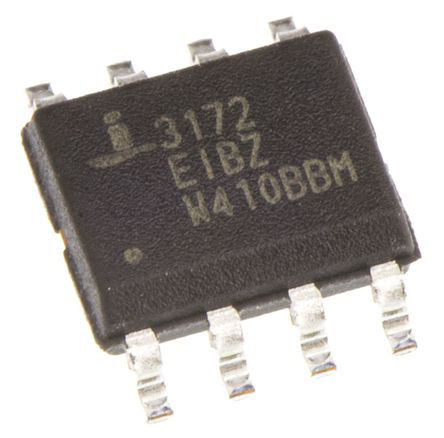

INTERSIL ISL83072EIBZA 芯片, 收发器, RS422, RS485, 3.6V, SOIC-8
The is a powered Single Transceiver meets both the RS-485 and RS-422 standards for balanced communication. This device has very low bus currents, so it presents a true 1/8 unit load to the RS-485 bus. This allows up to 256 transceiver on the network without violating the RS-485 specifications 32 unit load maximum and without using repeaters. Receiver Rx inputs feature a full fail-safe design, which ensures a logic high Rx output if Rx inputs are floating, shorted or terminated but un-driven. Hot plug circuitry ensures that the Tx and Rx outputs remain in a high impedance state while the power supply stabilizes. The ISL83070E through ISL83075E utilizes slew rate limited driver which reduce EMI and minimize reflections from improperly terminated transmission lines or un-terminated stubs in multi-drop and multipoint applications.
电源电压DC 3.00V min
针脚数 8
数据速率 250 kbps
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Communications & Networking, Portable Devices, Computers & Computer Peripherals, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ISL83072EIBZA Intersil 英特矽尔 | 当前型号 | 当前型号 |
SN65HVD12DR 德州仪器 | 完全替代 | ISL83072EIBZA和SN65HVD12DR的区别 |
ISL83072EIBZA-T 英特矽尔 | 完全替代 | ISL83072EIBZA和ISL83072EIBZA-T的区别 |
ISL83072EIBZA-T7A 英特矽尔 | 完全替代 | ISL83072EIBZA和ISL83072EIBZA-T7A的区别 |
