INFINEON IDW75E60 标准功率二极管, 单, 600 V, 120 A, 2 V, 220 A
The is a Fast EmCon Diode offers low reverse recovery charge and low forward voltage. This 600V family has been primarily designed for motor drive applications up to 30kHz. For this reason, the outstanding features of the diode are softness and VF parameter. This results in diode that has excellent EMI behaviour and low conduction losses. The entire family has been qualified with a Tj maximum of 175°C.
- .
- Lowest V F values
- .
- Excellent trade-off on performance
- .
- Low-conduction losses
- .
- Easy paralleling
- .
- Halogen-free
正向电压 2V @75A
反向恢复时间 121 ns
正向电流 120 A
最大正向浪涌电流（Ifsm） 220 A
正向电压Max 2 V
工作温度Max 175 ℃
工作温度Min 55 ℃
安装方式 Through Hole
引脚数 3

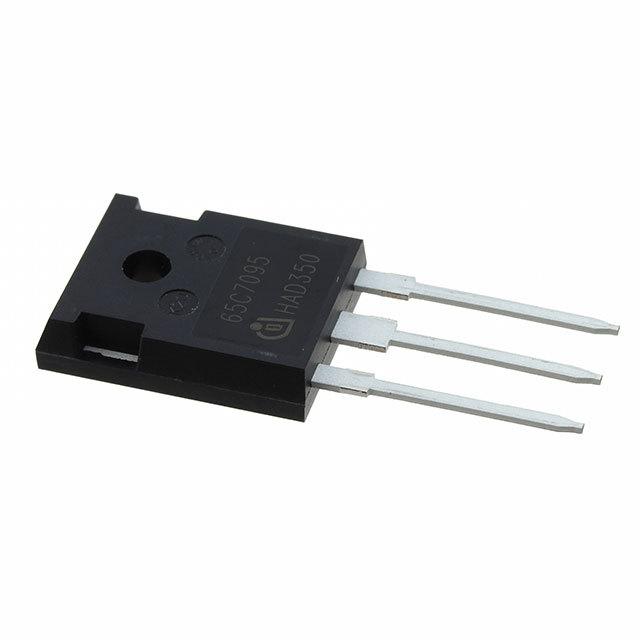

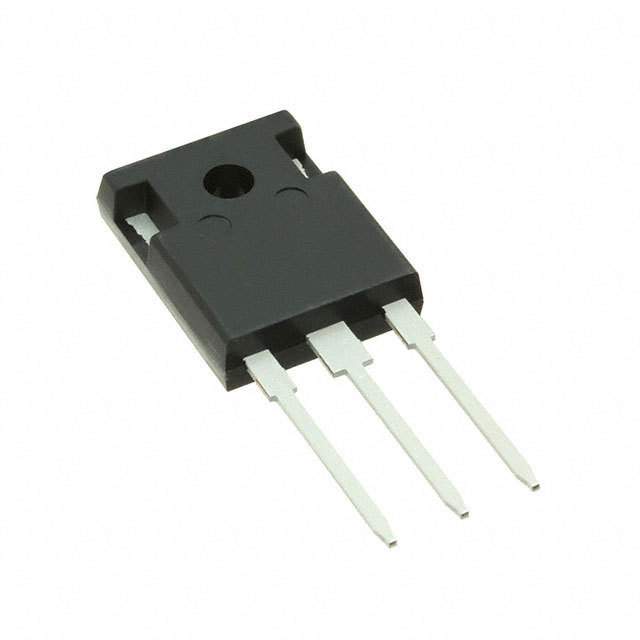

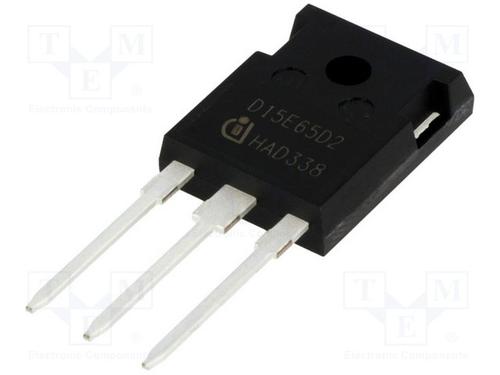

封装 TO-247-3
长度 15.9 mm
宽度 5.3 mm
高度 20.95 mm
封装 TO-247-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Consumer Electronics, up to 30kHz., Motor Drive & Control, Industrial, Primarily designed for
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
