INTERSIL ICM7556IPDZ 芯片, 定时器 双通道 CMOS
The is a CMOS RC Timer provides significantly improved performance over the standard SE/NE555/6 and 355 timers, while at the same time being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIGGER and RESET currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple control voltage for stable operation. Specifically, the ICM7556 are stable controllers capable of producing accurate time delays or frequencies. The ICM7556 is a dual ICM7555, with the two timers operating independently of each other, sharing only V+ and GND. In the one shot mode, the pulse width of each circuit is precisely controlled by one external resistor and capacitor.
ESD sensitive device, take proper precaution while handling the device.
频率 1 MHz
电源电压DC 2.00V min
额定电流 60.0 A
输出接口数 1
供电电流 120 µA
针脚数 14
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2V ~ 18V
电源电压Max 18 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 14

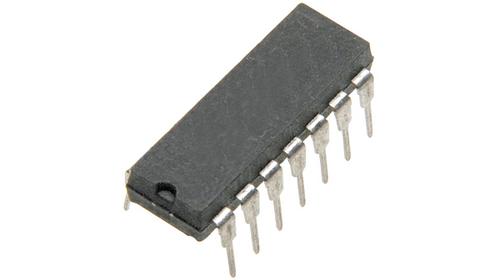

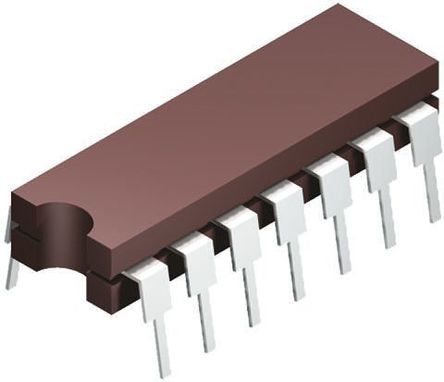

封装 DIP-14
长度 19.68 mm
宽度 7.11 mm
高度 4.95 mm
封装 DIP-14
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICM7556IPDZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
ICM7556IPD 英特矽尔 | 类似代替 | ICM7556IPDZ和ICM7556IPD的区别 |
NE556N 德州仪器 | 功能相似 | ICM7556IPDZ和NE556N的区别 |
TLC556CN 德州仪器 | 功能相似 | ICM7556IPDZ和TLC556CN的区别 |
