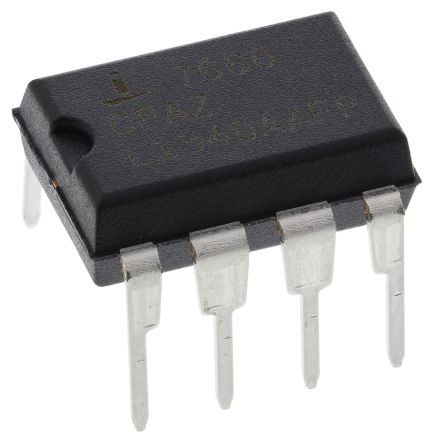

INTERSIL ICL7660CPAZ 芯片, 电压转换器
The is a monolithic CMOS charge pump voltage converter in 8 lead NSOIC package. This monolithic CMOS power supply circuit offers unique performance advantages. The ICL7660CPAZ performs supply voltage conversions from positive to negative for an input range of 1.5V to 10.0V resulting in complementary output voltages of -1.5V to -10.0V. Only two noncritical external capacitors are needed for charge pump and charge reservoir functions. The ICL7660CPAZ can also be connected to function as voltage doublers and will generate output voltages up to 18.6V with 10V input. It has on-chip series DC supply regulator, RC oscillator, voltage level translator and four output power MOS switches. A unique logic element senses most negative voltage in device and ensures that output N channel switch source substrate junctions are not forward biased. This assures latch-up free operation. The oscillator when unloaded oscillates at a nominal frequency of 10KHz for an input supply voltage of 5V.
This device is sensitive to electrostatic discharge, follow proper IC handling procedures.
频率 10.0 kHz
电源电压DC 10.0V max
输出接口数 1
输出电压 18.6 V
输出电流 45 mA
供电电流 0.5 mA
针脚数 8
开关频率 10 kHz
输入电压Max 10 V
输入电压Min 1.5 V
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 1.5V ~ 10V
安装方式 Through Hole
引脚数 8

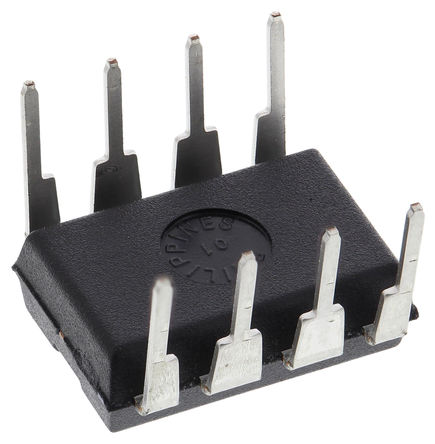

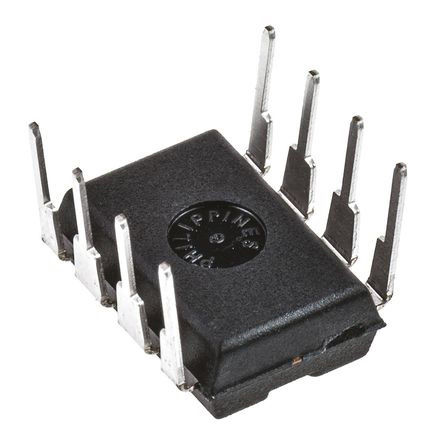

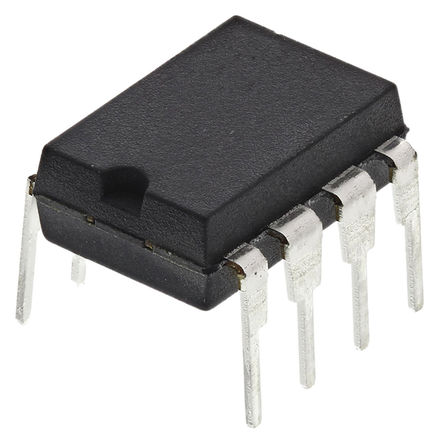

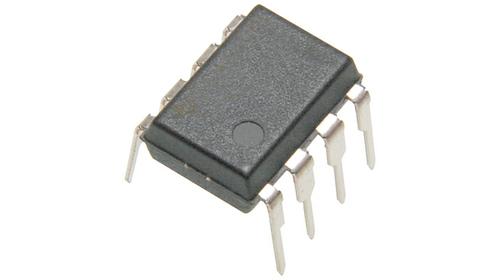

封装 DIP-8
长度 10.16 mm
宽度 7.11 mm
高度 4.95 mm
封装 DIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICL7660CPAZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
TC7662AEPA 微芯 | 功能相似 | ICL7660CPAZ和TC7662AEPA的区别 |
TC7660CPA 微芯 | 功能相似 | ICL7660CPAZ和TC7660CPA的区别 |
TC7662ACPA 微芯 | 功能相似 | ICL7660CPAZ和TC7662ACPA的区别 |
