INTERSIL ICL7660SIBAZ 芯片, 直流-直流电荷泵式转换器
The is a Super Voltage Converter, monolithic CMOS voltage conversion ICs that guarantee significant performance advantages over other similar devices. They are direct replacements for the industry standard ICL7660 offering an extended operating supply voltage range up to 12V, with lower supply current. A frequency boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors. The ICL7660S perform supply voltage conversions from positive to negative for an input range of 1.5 to 12V, resulting in complementary output voltages of -1.5 to -12V. Only two non-critical external capacitors are needed, for the charge pump and charge reservoir functions. The ICL7660S can be connected to function as a voltage doubler and will generate up to 22.8V with a 12V input. They can also be used as a voltage multipliers or voltage dividers.
ESD sensitive device, take proper precaution while handling the device.
频率 10 kHz
电源电压DC 12.0V max
输出接口数 1
输出电压 22.8 V
输出电流 45 mA
供电电流 0.16 mA
针脚数 8
开关频率 10kHz, 35kHz
输入电压Max 12 V
输入电压Min 1.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 1.5.10 V
安装方式 Surface Mount

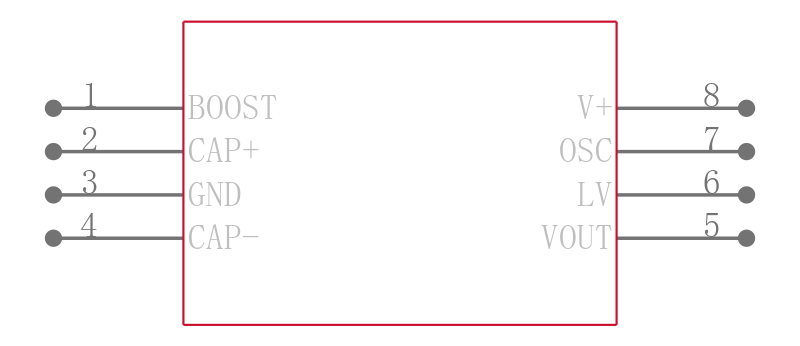

引脚数 8

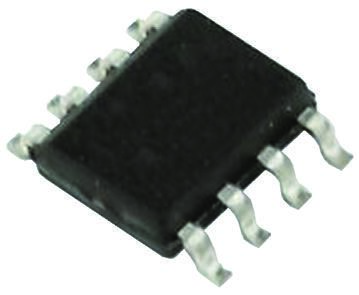

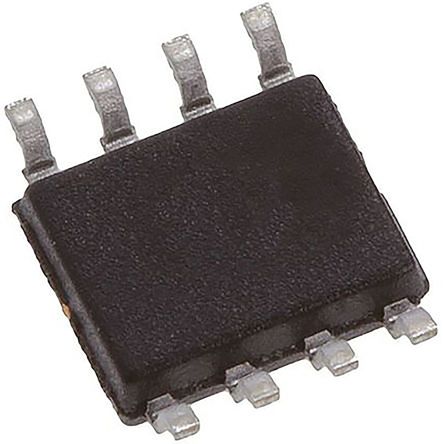

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICL7660SIBAZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
ICL7660SCBAZ 英特矽尔 | 完全替代 | ICL7660SIBAZ和ICL7660SCBAZ的区别 |
ICL7660SIBAZT 英特矽尔 | 类似代替 | ICL7660SIBAZ和ICL7660SIBAZT的区别 |
ICL7660SIBA 英特矽尔 | 类似代替 | ICL7660SIBAZ和ICL7660SIBA的区别 |
