IR2130SPBF

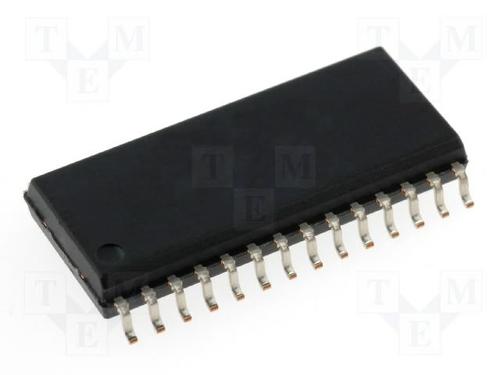

INTERNATIONAL RECTIFIER  IR2130SPBF  芯片, MOSFET驱动器, 半桥, SOIC-28

Description

The IR2130/IR2132JS is a high voltage, high speed power MOSFET and IGBT driver with three indepen

dent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized

monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.

Features

•Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

•Gate drive supply range from 10 to 20V

•Undervoltage lockout for all channels

•Over-current shutdown turns off all six drivers

•Independent half-bridge drivers

•Matched propagation delay for all channels

•2.5V logic compatible

•Outputs out of phase with inputs

•Cross-conduction prevention logic

•Also available LEAD-FREE
