Controller, Motion; DIP; 25; 20V; 600V; 20A; 495muJ; 4.5W; 150℃; 165muA; 20 + 0.3V

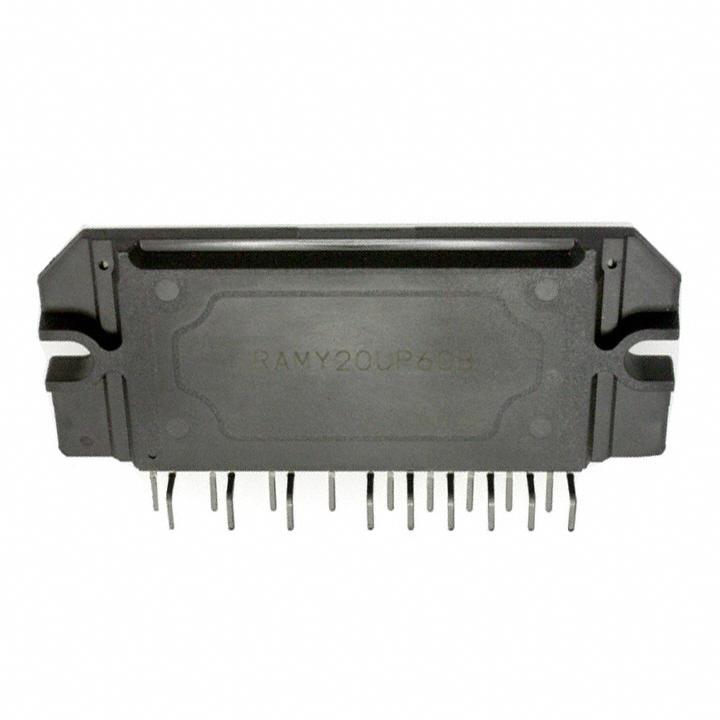

Integrated Power Hybrid IC for Motor Drive Applications.
**Features:**
* Integrated Gate Drivers and Bootstrap Diodes
* Temperature Monitor
* Overcurrent Shutdown
* Fully Isolated Package
* Low VCEon Non Punch Through IGBT Technology
* Undervoltage Lockout for All Channels
* Matched Propagation Delay for All Channels
* Cross-Conduction Prevention Logic
得捷:
20A, 600V IGBT
艾睿:
Motor Driver 18-Pin SIP-3
Allied Electronics:
Controller, Motion; DIP; 25; 20V; 600V; 20 A; 495muJ; 4.5 W; 150degC; 165muA; 20 + 0.3 V
Verical:
Motor Driver 18-Pin SIP-3
频率 20 KHz
电源电压DC 450V max
工作电压 12V ~ 20V
输出接口数 3
输出电压 450 V
输出电流 20 A
供电电流 165 μA
耗散功率 4.5 W
产品系列 IRAMY20UP60B
隔离电压 2000 Vrms
击穿电压集电极-发射极 600 V
输入偏置电流 200 μA
工作温度Max 125 ℃
工作温度Min -40 ℃
工作结温Max 150 ℃
电源电压 20 V
安装方式 Through Hole
引脚数 23
封装 SIP-3
长度 78 mm
宽度 6 mm
高度 31.1 mm
封装 SIP-3
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
