Controller, Motion; DIP; 25; 20V; 600V; 10A; 275muJ; 2.2W; 150℃; 165muA; 20 + 0.3V

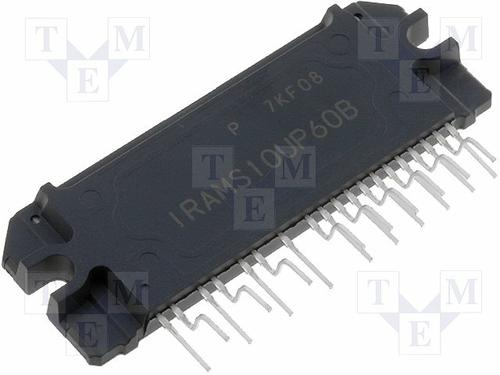

Integrated Power Hybrid IC for Motor Drive Applications.
**Features:**
* Integrated Gate Drivers and Bootstrap Diodes
* Temperature Monitor
* Overcurrent Shutdown
* Fully Isolated Package
* Low VCEon Non Punch Through IGBT Technology
* Undervoltage Lockout for All Channels
* Matched Propagation Delay for All Channels
* Cross-Conduction Prevention Logic
得捷:
IRAMS10 - AC MOTOR CONTROLLER, 1
艾睿:
3-Phase Motor Driver 19-Pin19+Tab SIP-1
Verical:
3-Phase Motor Driver 19-Pin19+Tab SIP-1
频率 20 KHz
电源电压DC 12.0V min
输出接口数 3
输出电压 450 V
输出电流 10 A
供电电流 165 μA
极性 N-Channel
耗散功率 2.2 W
产品系列 IRAMS10UP60B
隔离电压 2000 Vrms
击穿电压集电极-发射极 600 V
输入偏置电流 200 μA
输出电压Max 600 V
输出电流Max 10 A
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温Max 150 ℃
电源电压 20 V
电源电压Max 20 V
电源电压Min 12 V
安装方式 Through Hole
引脚数 23
封装 SIP-1
长度 62 mm
高度 5 mm
封装 SIP-1
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
