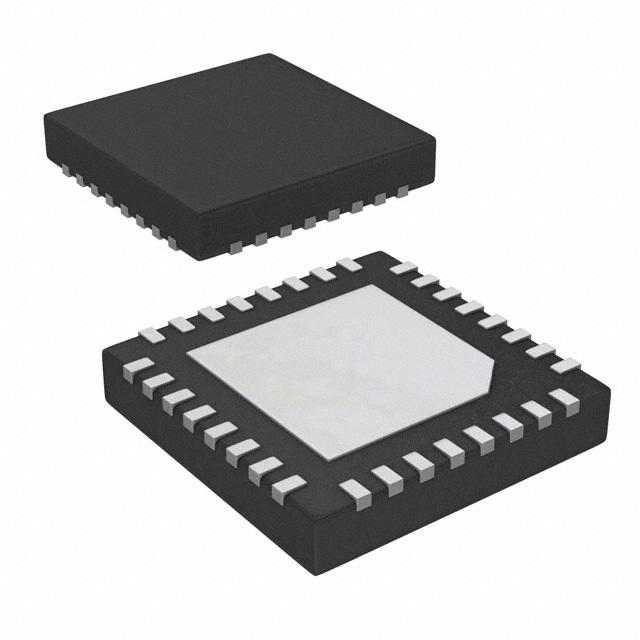

ISL6314CRZ

PWM控制器

Single-Phase Buck PWM Controller with Integrated MOSFET Drivers for Intel VR11 and AMD Applications

The ISL6314 single-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. This controller IC maintains the same features as the multi-phase product family, but reduces the output to a single-phase, for lower current systems. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution.

Features

• Integrated-driver Single-Phase Power Conversion

• Precision Core Voltage Regulation

\- Differential Remote Voltage Sensing

\- ±0.5% System Accuracy Over-Temperature

\- Adjustable Reference-Voltage Offset

• Optimal Transient Response

\- Adaptive Phase Alignment APA

\- Active Pulse Positioning APP Modulation

• Fully Differential, Continuous DCR Current Sensing

\- Accurate Load Line Programming

• Variable Gate Drive Bias: 5V to 12V

• Multi-Processor Compatible

\- Intel VR11 Mode of Operation

\- AMD Mode of Operation

• Microprocessor Voltage Identification Inputs

\- 8-Bit DAC

\- Selectable Between Intel VR11, AMD 5-bit, and AMD 6-bit DAC Tables

\- Dynamic VID Technology

• Overcurrent Protection

• Multi-tiered Overvoltage Protection

• Digital Soft-Start

• Selectable Operation Frequency up to 1.0MHz

• Pb-Free RoHS compliant
