IKN0603000

IKN series DIL switches, CMS versionVery low profile DIL switches, can be wave soldered. Tinned outputs. Recessed slide to indexed position. Self-cleaning sliding contacts. Breaking capacity: | 100 mA @ 24 Vdc ---|--- Insulation resistance: | 1000MΩ Contact resistance: | Dielectric strength: | 500Vac Service life: | 2000 cycles Operating temperature: | –40 → +100 °C **Stock** | number | length A ---|---|--- **no.** | channels | mm 251-9146 | 2 | 6 251-9152 | 4 | 11.1 251-9168 | 6 | 16.2 251-9174 | 8 | 21.3 ### DIL 表面安装### 双在线开关微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

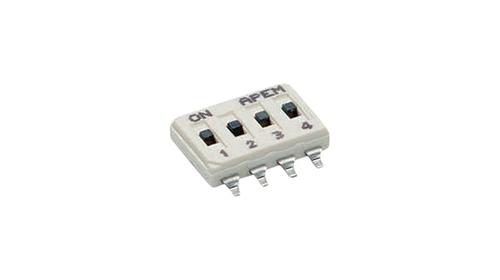

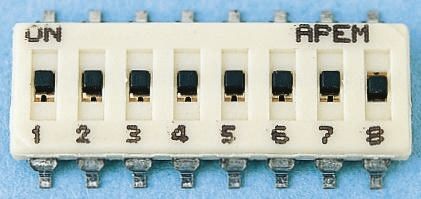

IKN series DIL switches, CMS version

Very low profile DIL switches, can be wave soldered.

Tinned outputs.

Recessed slide to indexed position.

Self-cleaning sliding contacts.

### 双在线

微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

欧时:
DIP SWITCH 6P CMS

得捷:
SWITCH SLIDE DIP SPST 100MA 24V

贸泽:
DIP Switches / SIP Switches 6POS SPST 0.1A 24VDC

艾睿:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

Chip1Stop:
Switch DIP ON OFF SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

Verical:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

MASTER:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

Powell:
DIP Switch

Online Components:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

Electro Sonic:
Switch DIP OFF ON SPST 6 Recessed Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube
