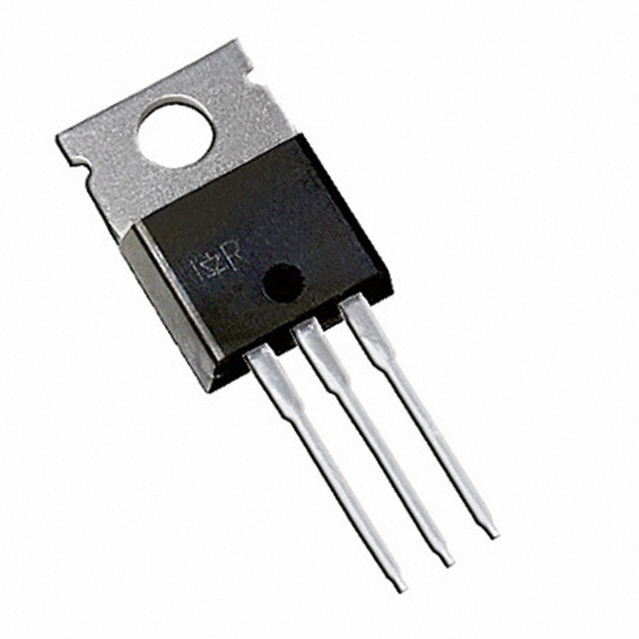

Trans IGBT Chip N-CH 600V 31A 100000mW 3Pin3+Tab TO-220AB Tube
**Single IGBT up to 20A, Infineon**
optimized IGBTs designed for medium frequency applications with fast response which provide the user with the highest efficiency available. These devices utilize FRED diodes optimized to provide the best performance with IGBTs
得捷:
IRG4BC30F - 600V FAST 1-8 KHZ DI
艾睿:
Trans IGBT Chip N-CH 600V 31A 3-Pin3+Tab TO-220AB Tube
Allied Electronics:
600V FAST 1-8 KHZ DISCRETE IGBT IN A TO-220AB PACKAGE
Verical:
Trans IGBT Chip N-CH 600V 31A 3-Pin3+Tab TO-220AB Tube
DeviceMart:
IGBT FAST 600V 31A TO220AB
额定电压DC 600 V
额定电流 31.0 A
极性 N-Channel
耗散功率 100 W
产品系列 IRG4BC30F
上升时间 15.0 ns
击穿电压集电极-发射极 600 V
热阻 1.2℃/W RθJC
额定功率Max 100 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
宽度 4.69 mm
高度 16.51 mm
封装 TO-220-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRG4BC30FPBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
STGP20NC60V 意法半导体 | 功能相似 | IRG4BC30FPBF和STGP20NC60V的区别 |
