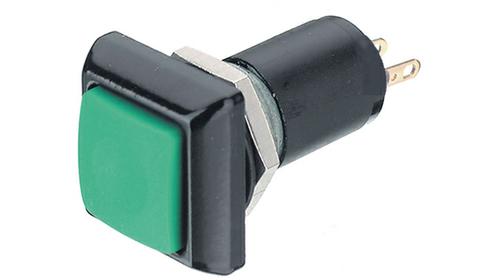

Switch Push Button N.O. SPST Square Plunger 0.5A 250VAC 50VDC Momentary Contact Solder Lug Panel Mount
The IP series pushbutton switch is offered with momentary and latching push on - push off configurations, and is available with illumination. Expected life of 200,000 cycles. Manufactured with gold plated silver contacts and with solder lug terminals or insulated wire leads.
立创商城:
IPC3SAD6
贸泽:
Pushbutton Switches SEALED OFF-ON RED
Allied Electronics:
Switch; IP67 Sealed; Pushbutton; Latching; with Red Actuator
Verical:
Switch Push Button N.O. SPST Square Plunger 0.5A 250VAC 50VDC Momentary Contact Solder Lug Panel Mount Automotive
Newark:
# APEM IPC3SAD6 Pushbutton Switch, On-On, SPST-NO, 250 V, 50 V, 500 mA, Solder
MASTER:
Switch Push Button N.O. SPST Square Plunger 0.5A 250VAC 50VDC Momentary Contact Solder Lug Panel Mount Automotive
Powell:
IP67 Sealed Pushbutton Switch
Electro Sonic:
Switch Push Button N.O. SPST Square Plunger 0.5A 250VAC 50VDC Momentary Contact Solder Lug Panel Mount Automotive
触点电镀 Gold
额定电压DC 50 V
接触器类型 Button
额定电压AC 48 V
额定电流 500mA AC, 200mA DC
方向 Vertical
触点类型 SPST-NO
触点额定电流 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 250 VAC
安装方式 Through Hole
封装 -
高度 25.4 mm
封装 -
触点材质 Silver
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509031
