IAR3F17/100

IAR3F17/100图片1
IAR3F17/100图片2
IAR3F17/100图片3
IAR3F17/100图片4
IAR3F17/100图片5
IAR3F17/100图片6
IAR3F17/100图片7
IAR3F17/100图片8
IAR3F17/100图片9
IAR3F17/100图片10
IAR3F17/100概述

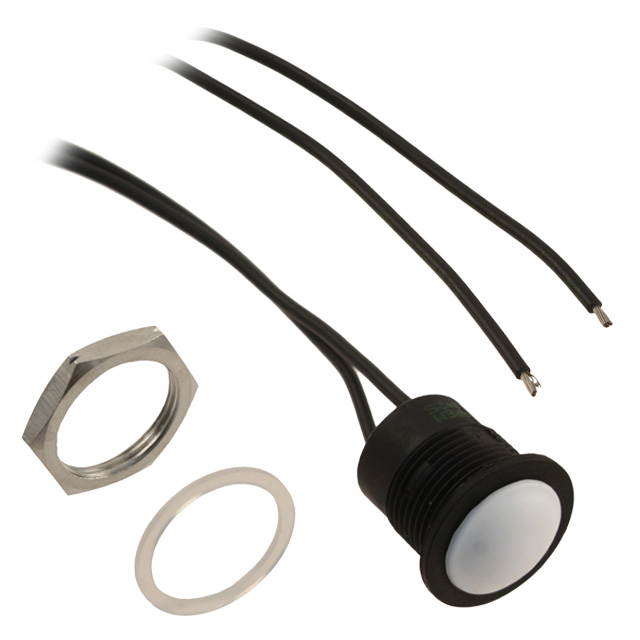

APEM Round 16mm Normally Open Push Button switch with Flying leads and White and Black Case.

按钮 SPST-NO 标准 前面板安装


得捷:
SWITCH PUSH SPST-NO 2A 24V


Verical:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive


MASTER:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive


Powell:
IP67 Sealed Pushbutton Switch


Online Components:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive


Electro Sonic:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive


IAR3F17/100中文资料参数规格
技术参数

额定电压DC 24 V

接触器类型 Button

额定电流 2A DC

方向 Vertical

触点类型 SPST-NO

工作温度Max 65 ℃

工作温度Min -20 ℃

额定电压DC Max 24 V

接触电阻Max 100 mΩ

封装参数

安装方式 Panel

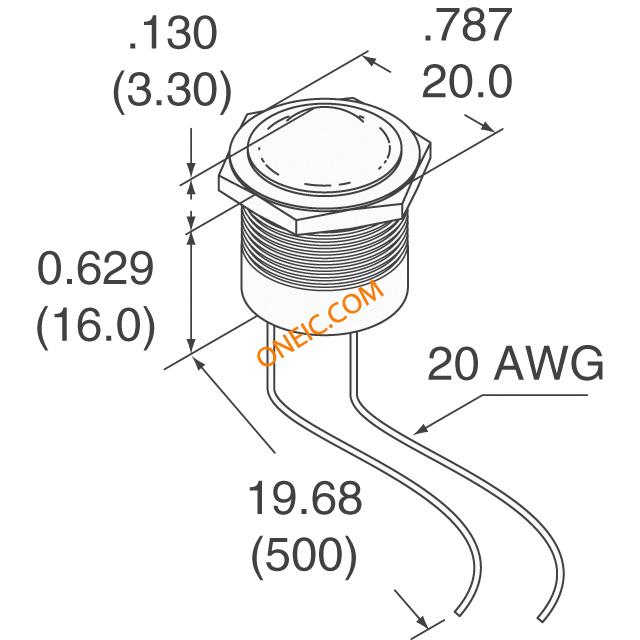

外形尺寸

高度 22 mm

物理参数

触点材质 Silver

工作温度 -20℃ ~ 65℃

其他

产品生命周期 1000000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 8536509065

数据手册

在线购买IAR3F17/100
型号: IAR3F17/100
制造商: Apem Components
描述:APEM Round 16mm Normally Open Push Button switch with Flying leads and White and Black Case.
