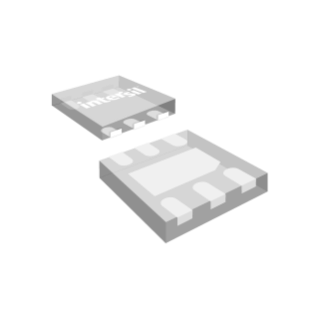

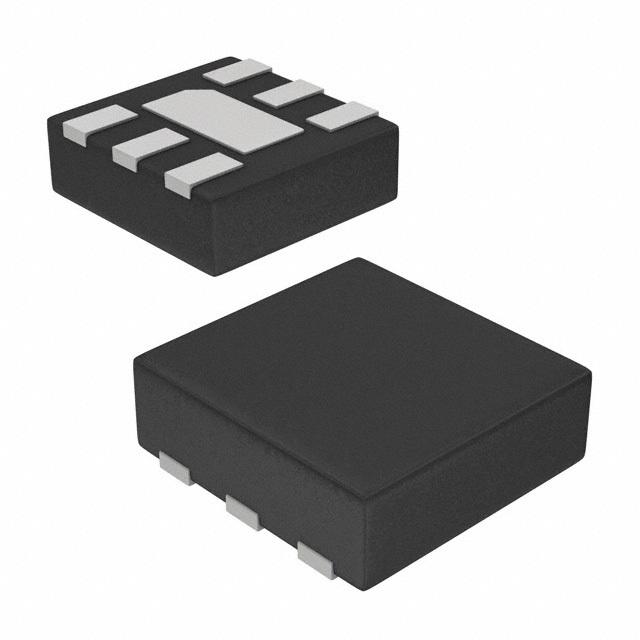

ISL29003IROZ-T7

INTERSIL  ISL29003IROZ-T7  芯片, 光电传感器, 数字输出

The is an Integrated Light Sensor with a 16-bit integrating type ADC, I²C user programmable Lux range select for optimized counts/Lux and I²C multi-function control and monitoring capabilities. The internal ADC provides 16-bit resolution while rejecting 50Hz and 60Hz flicker caused by artificial light sources. In normal operation, power consumption is less than 300µA. Furthermore, an available software power-down mode controlled via the I²C interface reduces power consumption to less than 1µA. The ISL29003 supports a hardware interrupt that remains asserted low until the host clears it through I²C interface.

.

Range select via I²C - 1 = 0 to 1000Lux, 2 = 0 to 4000Lux, 3 = 0 to 16,000Lux, 4 = 0 to 64,000Lux

.

Human eye response 540nm peak sensitivity

.

Temperature compensated

.

Adjustable resolution: up to 65 counts per Lux

.

User-programmable upper and lower threshold interrupt

.

Simple output code, directly proportional to Lux

.

IR + UV rejection
