INTERSIL IS82C55AZ 输入/输出扩展, 8bit, 8 MHz, CMOS, 4.5 V, 5.5 V, LCC
The is a CMOS Programmable Peripheral Interface manufactured using a self-aligned silicon gate CMOS process Scaled SAJI IV. It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 82C55A make it compatible with the 80C86, 80C88 and other microprocessors. Static CMOS circuit design insures low operating power. TTL compatibility over the full military temperature range and bus hold circuitry eliminates the need for pull-up resistors. The advanced SAJI process results in performance equal to or greater than existing functionally equivalent products at a fraction of the power.
电源电压DC 4.50V min
供电电流 10.0 µA
针脚数 44
输入/输出数 24 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 44

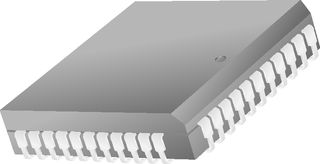

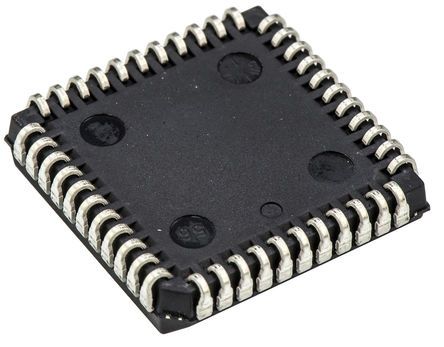

封装 PLCC-44
长度 16.66 mm
宽度 16.66 mm
高度 3.69 mm
封装 PLCC-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 , 射频通信, Automotive, Imaging, Video & Vision, Sensing & Instrumentation, RF Communications, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IS82C55AZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
CS82C55A 英特矽尔 | 完全替代 | IS82C55AZ和CS82C55A的区别 |
IS82C55AZ96 英特矽尔 | 完全替代 | IS82C55AZ和IS82C55AZ96的区别 |
IS82C55A 英特矽尔 | 完全替代 | IS82C55AZ和IS82C55A的区别 |
