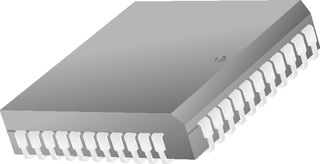

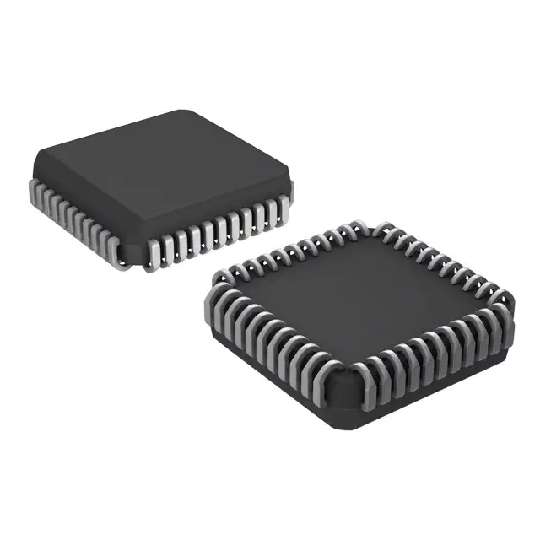

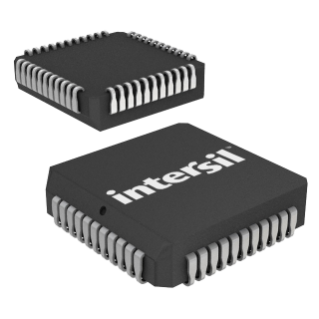

IS82C55A-5Z

CMOS可编程外设接口 CMOS Programmable Peripheral Interface

CMOS Programmable Peripheral Interface

The 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process Scaled SAJI IV. It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 82C55A make it compatible with the 80C86, 80C88 and other microprocessors.

Features

• Pb-Free Plus Anneal Available RoHS Compliant See Ordering Info

• Pin Compatible with NMOS 8255A

• 24 Programmable I/O Pins

• Fully TTL Compatible

• High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88

• Direct Bit Set/Reset Capability

• Enhanced Control Word Read Capability

• L7 Process

• 2.5mA Drive Capability on All I/O Ports

• Low Standby Power ICCSB . . . . . . . . . . . . . . . . . . .10μA
