EcoSPARKTM 500mJ ， 360V ， N沟道IGBT点火 EcoSPARKTM 500mJ, 360V, N-Channel Ignition IGBT
General Description
The ISL9V5036S3ST, , and ISL9V5036S3 are the next generation IGBTs that offer outstanding SCIS capability in the D²- Pak TO-263 and TO-220 plastic package. These devices are intended for use in automotive ignition circuits, specifically as coil drivers. Internal diodes provide voltage clamping without the need for external components.
EcoSPARK™ devices can be custom made to specific clamp voltages. Contact your nearest sales office for more information.
Features
• Industry Standard D2-Pak package
• SCIS Energy = 500mJ at TJ = 25oC
• Logic Level Gate Drive
Applications
• Automotive Ignition Coil Driver Circuits
• Coil-On Plug Applications
额定电压DC 360 V
额定电流 46.0 A
输出接口数 1
耗散功率 250000 mW
上升时间 2.10 µs
击穿电压集电极-发射极 390 V
额定功率Max 250 W
工作温度Max 175 ℃
工作温度Min -40 ℃
耗散功率Max 250000 mW
安装方式 Through Hole
引脚数 3

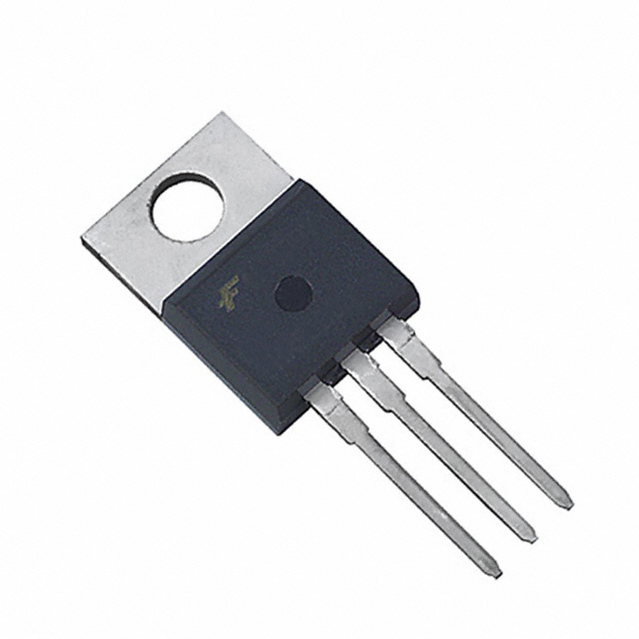

封装 TO-220-3
高度 9.02 mm
封装 TO-220-3
工作温度 -40℃ ~ 175℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ISL9V5036P3 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
ISL9V5036S3S 安森美 | 类似代替 | ISL9V5036P3和ISL9V5036S3S的区别 |
HGT1S20N35G3VLS 飞兆/仙童 | 功能相似 | ISL9V5036P3和HGT1S20N35G3VLS的区别 |
ISL9V5036S3ST 安森美 | 功能相似 | ISL9V5036P3和ISL9V5036S3ST的区别 |
