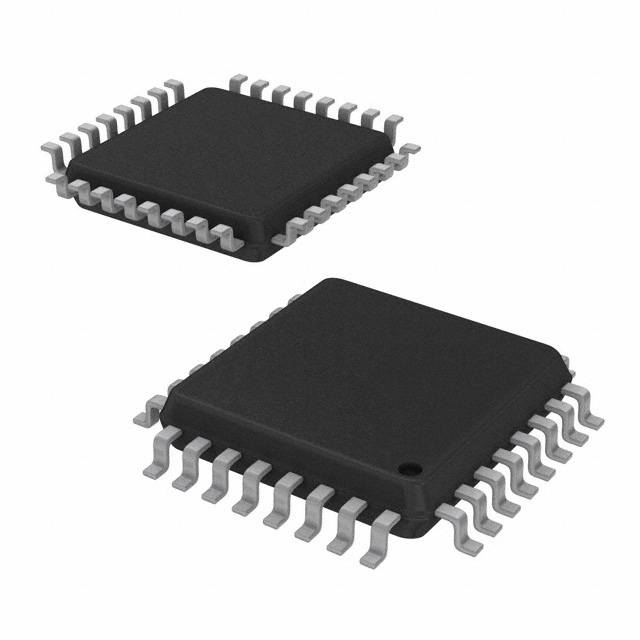

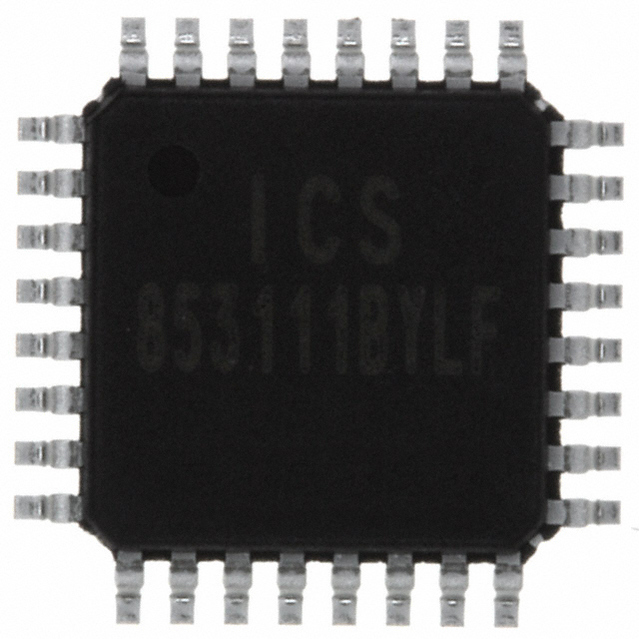

ICS853111BYLF

低偏移， 1到10 ，差分至2.5V ， 3.3V LVPECL / ECL扇出缓冲器 LOW SKEW, 1-TO-10, DIFFERENTIAL-TO- 2.5V, 3.3V LVPECL/ECL FANOUT BUFFER

GENERAL DESCRIPTION

The ICS853111B is a low skew, high performance 1-to-10 Differential-to-2.5V/3.3V LVPECL/ECL Fanout Buffer and a member of the HiPerClock S™ family of High Performance Clock Solutions from ICS. The ICS853111B is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the ICS853111B ideal for those clock distribution applications demanding well defined performance and repeatability.

FEATURES

• Ten differential 2.5V/3.3V LVPECL / ECL outputs

• Two selectable differential input pairs

• PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL

• Maximum output frequency: >3GHz

• Translates any single ended input signal to 3.3V LVPECL levels with resistor bias on nPCLK input

• Output skew: 20ps typical

• Part-to-part skew: 85ps typical

• Propagation delay: 495ps typical

• Jitter, RMS: < 0.03ps typical

• LVPECL mode operating voltage supply range:

  VCC = 2.375V to 3.8V, VEE = 0V

• ECL mode operating voltage supply range:

  VCC = 0V, VEE = -3.8V to -2.375V

• -40°C to 85°C ambient operating temperature

• Available in both standard RoHS 5 and lead-free RoHS 6 packages
