电压输出,高或低侧测量,双向零漂移系列电流并联监视器 Voltage Output, High or Low Side Measurement, Bi-Directional Zero-Drift Series CURRENT SHUNT MONITOR
DESCRIPON
The INA210, INA211, INA212, INA213, and INA214 are voltage output current shunt monitors that can
sense drops across shunts at common-mode voltages from –0.3V to 26V, independent of the supply voltage. Five fixed gains are available: 50V/V, 100V/V, 200V/V, 500V/V, or 1000V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale.
FEATURES
• WIDE COMMON-MODE RANGE: –0.3V to 26V
• OFFSET VOLTAGE: ±35µV Max, INA210
Enables shunt drops of 10mV full-scale
• ACCURACY
– ±1% Gain Error Max over temperature
– 0.5µV/°C Offset Drift Max
– 10ppm/°C Gain Drift Max
• CHOICE OF GAINS:
– INA210: 200V/V
– INA211: 500V/V
– INA212: 1000V/V
– INA213: 50V/V
– INA214: 100V/V
• QUIESCENT CURRENT: 100µA max
• SC70 package
APPLICATIONS
• NOTEBOOK COMPUTERS
• CELL PHONES
• TELECOM EQUIPMENT
• POWER MANAGEMENT
• BATTERY CHARGERS
• WELDING EQUIPMENT
供电电流 65 µA
电路数 1
通道数 1
共模抑制比 105 dB
增益频宽积 7 kHz
输入补偿电压 0.55 µV
输入偏置电流 28 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
共模抑制比Min 105 dB
电源电压Max 20V ~ 30V
安装方式 Surface Mount
引脚数 6

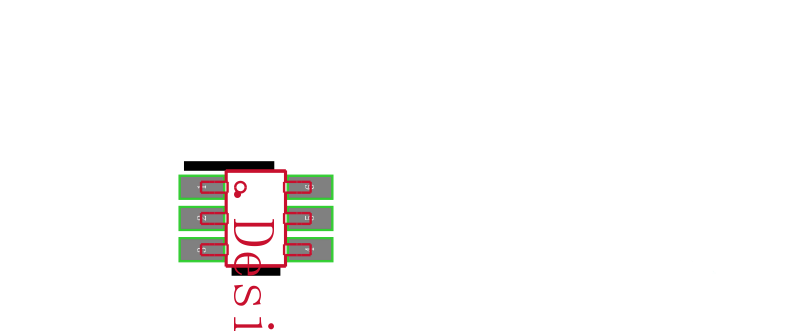

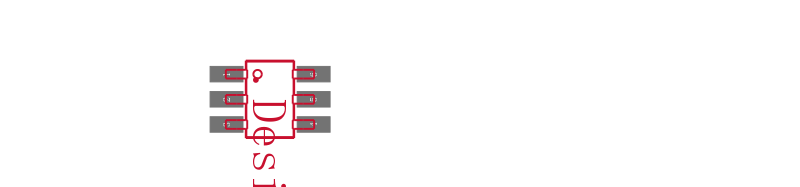

封装 SC-70-6
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
INA211AIDCKR TI 德州仪器 | 当前型号 | 当前型号 |
INA211AIDCKT 德州仪器 | 类似代替 | INA211AIDCKR和INA211AIDCKT的区别 |
INA211AIDCKTG4 德州仪器 | 类似代替 | INA211AIDCKR和INA211AIDCKTG4的区别 |
INA211AIDCKRG4 德州仪器 | 类似代替 | INA211AIDCKR和INA211AIDCKRG4的区别 |
