INA230EVM概述

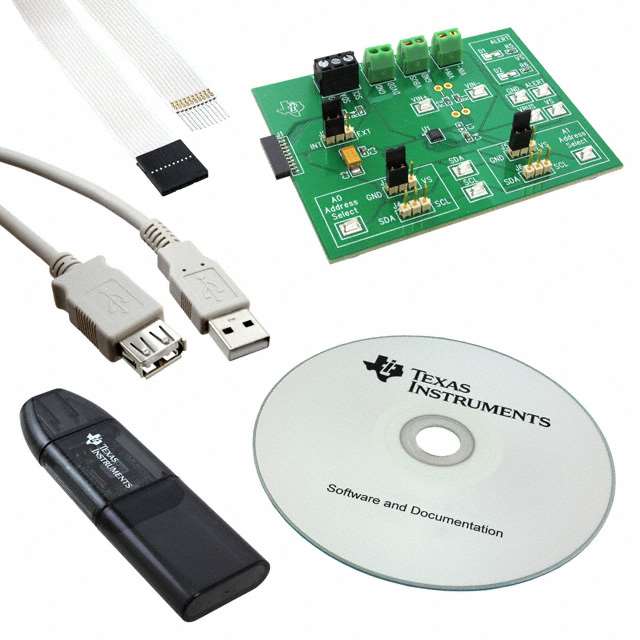

INA230EVM评估板和软件教程 INA230EVM Evaluation Board and Software Tutorial
The is an evaluation module used to evaluate INA230 instrumentation amplifier. The INA230 is a high side current sensor and power monitor with an I2C interface. The INA230 monitors both current and supply voltage, with programmable conversion times and averaging modes. The evaluation module is a platform for evaluating the performance of the INA230 under various signal, shunt, and supply conditions.
- .
- INA230 is a current shunt and power monitor with I2C interface, features 16 programmable addresses
- .
- SM-USB-DIG platform generates analog and digital signals used to communicate with INA230 test board
- .
- INA230 monitors both current and supply voltage with programmable conversion times, averaging modes
- .
- INA230EVM is used for evaluating the performance of the INA230
- .
- Bus voltage sensing from 0V to 28V
Many of the components on the INA230EVM are susceptible to damage by electrostatic discharge ESD. Customers are advised to observe proper ESD handling precautions
