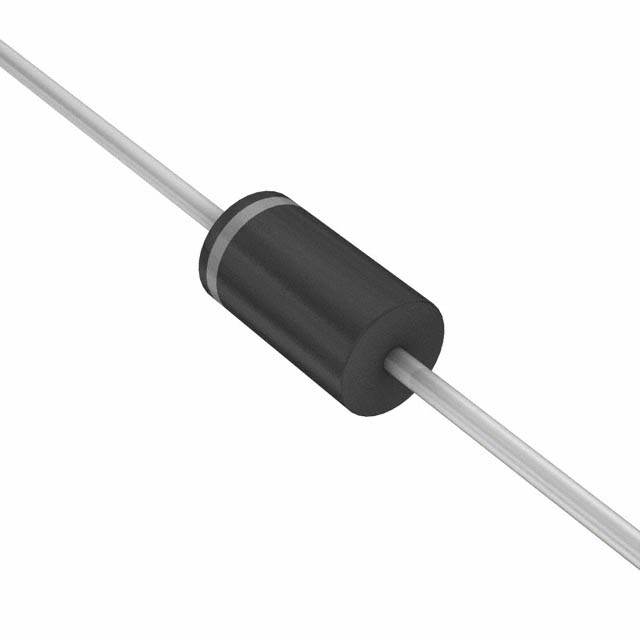

VISHAY ICTE15-E3/54 TVS二极管, AEC-Q450, AEC-Q101 ICTE系列, 单向, 15 V, 20.6 V, DO-201, 2 引脚
The TRANSZORB ICTE series Transient Voltage Suppressor Diode offers 1500W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
工作电压 15 V
击穿电压 17.6 V
电路数 1
针脚数 2
钳位电压 20.6 V
测试电流 1 mA
最大反向击穿电压 17.6 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 17.6 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AA
长度 9.5 mm
封装 DO-201AA
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICTE15-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1N6377-E3/73 威世 | 类似代替 | ICTE15-E3/54和1N6377-E3/73的区别 |
ICTE15-E3/51 威世 | 类似代替 | ICTE15-E3/54和ICTE15-E3/51的区别 |
ICTE15-E3/73 威世 | 类似代替 | ICTE15-E3/54和ICTE15-E3/73的区别 |
