极高精度仪表放大器 10-TO-100
This instrumentation amplifier differential amplifier, developed by Texas Instruments, can use both channels in order to amplify an audio signal. Its maximum power dissipation is 600 mW. Its typical dual supply voltage is ±15 V, with a minimum of ±5 V and maximum of ±20 V. This part has a temperature range of -55 °C to 125 °C. It has a single channel per chip. This device uses dual power supplies.
供电电流 6.7 mA
电路数 1
通道数 1
耗散功率 0.6 W
共模抑制比 80 dB
静态电流 6.70 mA
带宽 25.0 MHz
转换速率 400 mV/μs
输入补偿电压 10 µV
输入偏置电流 10 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
3dB带宽 300 kHz
耗散功率Max 600 mW
电源电压Max 30V ~ 50V
安装方式 Through Hole
引脚数 10

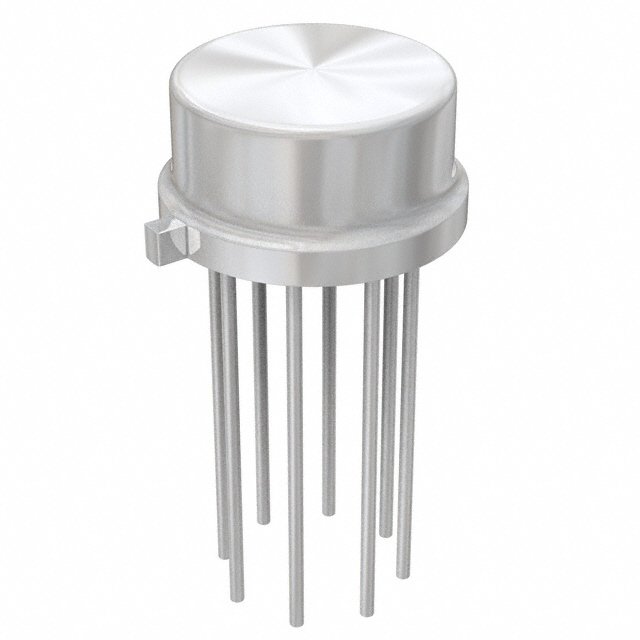

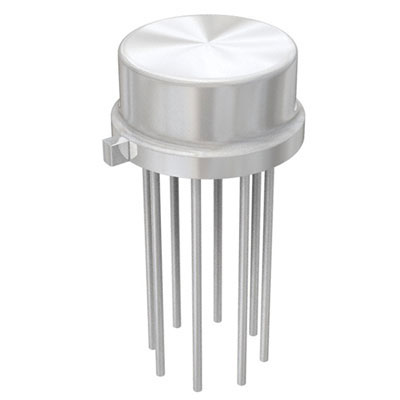

封装 TO-100-10
封装 TO-100-10
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
INA101SM TI 德州仪器 | 当前型号 | 当前型号 |
INA101AM 德州仪器 | 类似代替 | INA101SM和INA101AM的区别 |
INA101CM 德州仪器 | 类似代替 | INA101SM和INA101CM的区别 |
INA101AM2 德州仪器 | 类似代替 | INA101SM和INA101AM2的区别 |
