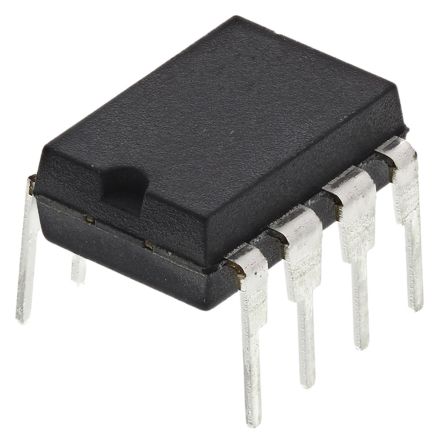

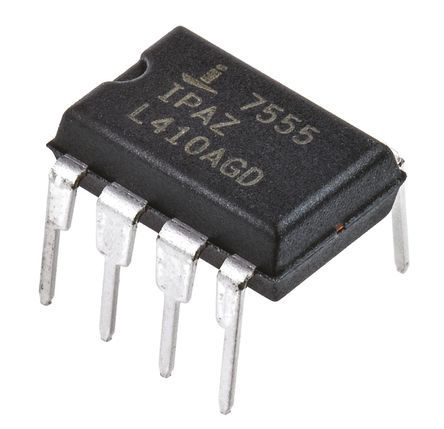

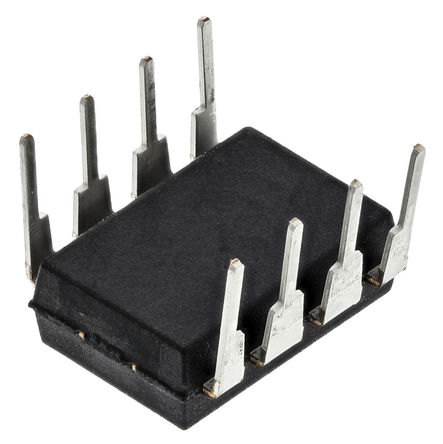

ICL7621DCPAZ

ICL7621，双路，低功耗 CMOS 运算放大器，Intersil工作电压范围：±1 V 至 ±8 V 高输入抗阻：10¹² Ω 输入电流 1 pA（典型值） ### 运算放大器，IntersilIntersil 运算放大器为行业内的高性能放大器 IC。

The is a Dual CMOS Operational Amplifier provides the designer with high performance operation at low supply voltages and selectable quiescent currents. They are an ideal design tool when ultra low input current and low power dissipation are desired. The basic amplifier will operate at supply voltages ranging from ±1 to ±8V and may be operated from a single Lithium cell. The output swing ranges to within a few millivolts of the supply voltages. The quiescent supply current of these amplifiers is set to 100µA at the factory. This results in power consumption as low as 200µW per amplifier. Of particular significance is the extremely low 1pA input current, input noise current of 0.01pA/√Hz and 1012R input impedance. These features optimize performance in very high source impedance applications.

.

Input current lower than BIFETs 1pA typical

.

Output voltage swing V+ and V-

.

Low power replacement for many standard op amps

ESD sensitive device, take proper precaution while handling the device.
