ISL55001IBZ

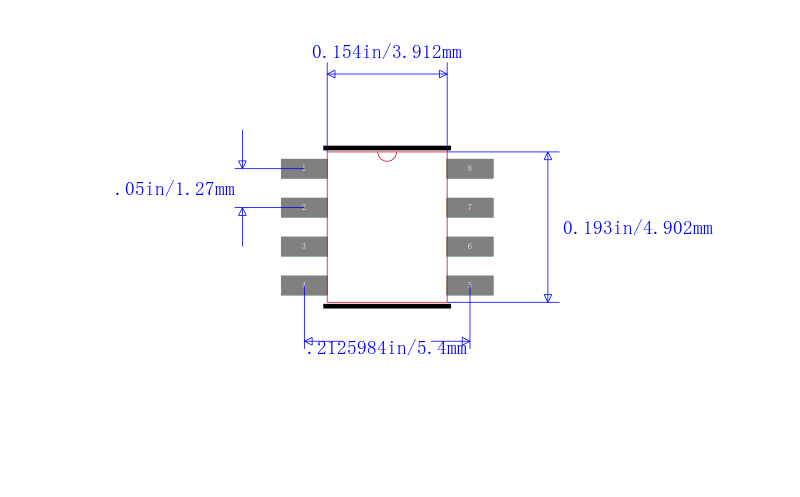

INTERSIL  ISL55001IBZ  运算放大器, 单路, 220 MHz, 1个放大器, 280 V/µs, ± 2.5V 至 ± 15V, SOIC, 8 引脚

The is a high supply voltage single Operational Amplifier for use with pin diode receivers. The unity-gain stable op-amp features a 300V/µs slew rate and 220MHz bandwidth while requiring only 9mA of supply current. The power supply operating range of the ISL55001 is from ±15V down to ±2.5V. For single-supply operation, the ISL55001 operates from 30V down to 5V. The ISL55001 also features an extremely wide output voltage swing of -12.75V/+13.4V with VS=±15V and RL=1kR. At a gain of +1, the ISL55001 has a -3dB bandwidth of 220MHz with a phase margin of 50°. Because of its conventional voltage-feedback topology, the ISL55001 allows the use of reactive or non-linear elements in its feedback network. This versatility combined with low cost and 140mA of output-current drive makes the ISL55001.

.

9mA at VS=±15V Low supply current

.

75ns to 0.1% for a 10V step Fast settling

.

18µV/°C Average offset voltage drift

.

0.01% Differential gain

.

0.05° Differential phase
