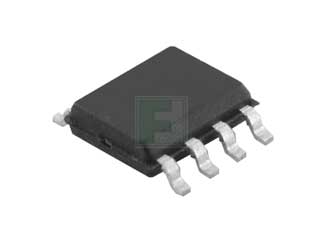

INTERNATIONAL RECTIFIER IRF8707PBF 场效应管, N 通道, MOSFET, 30V, 11A, SOIC 新
Description
The IRF8707PbF incorporates the latest HEXFET Power MOSFET Silicon Technology into the industry standard SO-8 package. The IRF8707PbF has been optimized for parameters that are critical in synchronous buck operationincluding Rdson and gate charge to reduce both conduction and switching losses. The reduced total losses make this product ideal for high efficiency DC-DC converters that power the latest generation of processors for notebook and Netcom applications.
Benefits
Very Low Gate Charge
Very Low RDSon at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
20V VGS Max. Gate Rating
100% tested for Rg
Lead-Free
针脚数 8
漏源极电阻 0.0119 Ω
极性 N-Channel
耗散功率 2.5 W
产品系列 IRF8707
阈值电压 1.8 V
输入电容 760pF @15V
漏源极电压Vds 30 V
连续漏极电流Ids 11.0 A
输入电容Ciss 760pF @15VVds
额定功率Max 2.5 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
IRF8707PBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
IRF9410PBF 国际整流器 | 类似代替 | IRF8707PBF和IRF9410PBF的区别 |
IRF7201TRPBF 英飞凌 | 功能相似 | IRF8707PBF和IRF7201TRPBF的区别 |
FDS6690A 飞兆/仙童 | 功能相似 | IRF8707PBF和FDS6690A的区别 |
