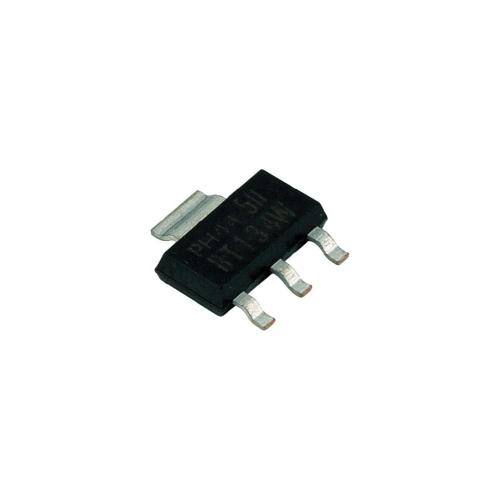

MOSFET, Power; N-Ch; VDSS 55V; RDSON 0.045Ω; ID 3.7A; SOT-223; PD 1W; VGS +/-20V
**N-Channel Power MOSFET up to 7A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
艾睿:
Trans MOSFET N-CH 55V 5.2A 4-Pin3+Tab SOT-223 Tube
Allied Electronics:
MOSFET, Power; N-Ch; VDSS 55V; RDSON 0.045Ohm; ID 3.7A; SOT-223; PD 1W; VGS +/-20V
Verical:
Trans MOSFET N-CH 55V 5.2A 4-Pin3+Tab SOT-223 Tube
额定电压DC 55.0 V
额定电流 3.70 A
漏源极电阻 0.045 Ω
极性 N-Channel
耗散功率 2.1 W
产品系列 IRFL4105
阈值电压 4 V
输入电容 660pF @25V
漏源极电压Vds 55 V
漏源击穿电压 55 V
连续漏极电流Ids 3.70 A
上升时间 12.0 ns
输入电容Ciss 660pF @25VVds
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
长度 6.7 mm
高度 1.45 mm
封装 TO-261-4
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
