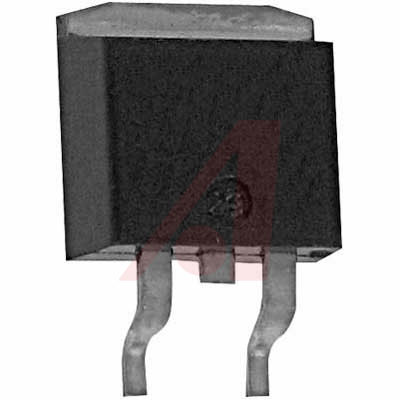

MOSFET, Power; P-Ch; VDSS -55V; RDSON 0.06Ω; ID -31A; D2Pak; PD 110W; VGS +/-20V
**P-Channel Power MOSFET over 8A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes P-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
e络盟:
INTERNATIONAL RECTIFIER IRF5305SPBF P CHANNEL MOSFET, -55V, 31A, D2-PAK
艾睿:
Trans MOSFET P-CH 55V 31A 3-Pin2+Tab D2PAK Tube
Verical:
Trans MOSFET P-CH 55V 31A 3-Pin2+Tab D2PAK Tube
额定电压DC -55.0 V
额定电流 -31.0 A
针脚数 3
漏源极电阻 0.06 Ω
极性 P-Channel
耗散功率 110 W
产品系列 IRF5305S
漏源极电压Vds 55 V
漏源击穿电压 -55.0 V
连续漏极电流Ids -31.0 A
上升时间 66.0 ns
输入电容Ciss 1200pF @25VVds
额定功率Max 3.8 W
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 10.67 mm
高度 4.83 mm
封装 TO-252-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRF5305SPBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
