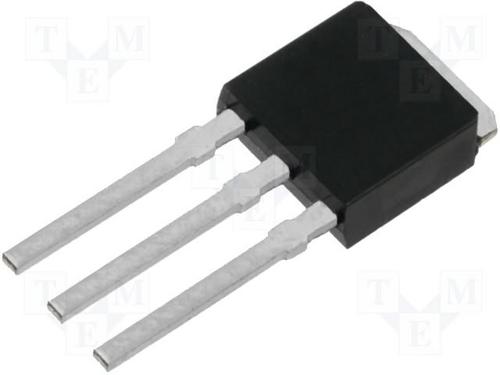

MOSFET, Power; P-Ch; VDSS -55V; RDSON 0.065Ω; ID -31A; I-Pak TO-251AA; PD 110W
**P-Channel Power MOSFET over 8A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes P-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
得捷:
IRFU5305 - 20V-250V P-CHANNEL PO
艾睿:
Trans MOSFET P-CH 55V 31A 3-Pin3+Tab IPAK Tube
Verical:
Trans MOSFET P-CH 55V 31A 3-Pin3+Tab IPAK Tube
Newark:
The IRFU5305PBF is a -55V single P-channel HEXFET® Power MOSFET, fifth generation HEXFET utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET® power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapour phase, infrared or wave soldering techniques.
DeviceMart:
MOSFET P-CH 55V 31A I-PAK
额定电压DC -55.0 V
额定电流 -28.0 A
通道数 1
漏源极电阻 0.065 Ω
极性 P-Channel
耗散功率 110 W
产品系列 IRFU5305
阈值电压 4 V
漏源极电压Vds 55 V
漏源击穿电压 -55.0 V
连续漏极电流Ids -31.0 A
上升时间 66.0 ns
输入电容Ciss 1200pF @25VVds
额定功率Max 110 W
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-251-3
长度 17.09 mm
高度 6.73 mm
脚长度 9.65 mm
封装 TO-251-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
