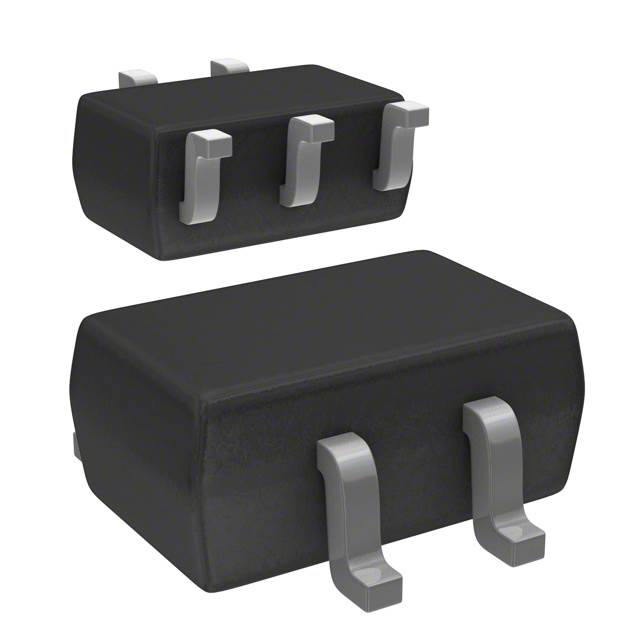

26V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor 6-SC70 -40℃ to 125℃
Do you need an electronic device to amplify audio signals in two channels? Then current shunt monitor differential amplifier from Texas Instruments is perfect for you! This part has a temperature range of -40 °C to 125 °C. It has a single channel per chip. This device uses a single power supply.
得捷:
IC CURR SENSE 1 CIRCUIT SC70-6
立创商城:
INA212AIDCKTG4
艾睿:
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R
安富利:
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R
Chip1Stop:
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R
Verical:
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R
供电电流 65 µA
电路数 1
通道数 1
共模抑制比 105 dB
增益频宽积 4 kHz
输入补偿电压 0.55 µV
输入偏置电流 28 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 105 dB
共模抑制比Min 105 dB
电源电压Max 26 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
INA212AIDCKTG4 TI 德州仪器 | 当前型号 | 当前型号 |
INA212AIDCKT 德州仪器 | 类似代替 | INA212AIDCKTG4和INA212AIDCKT的区别 |
INA212AIDCKR 德州仪器 | 类似代替 | INA212AIDCKTG4和INA212AIDCKR的区别 |
INA212AIDCKRG4 德州仪器 | 类似代替 | INA212AIDCKTG4和INA212AIDCKRG4的区别 |
