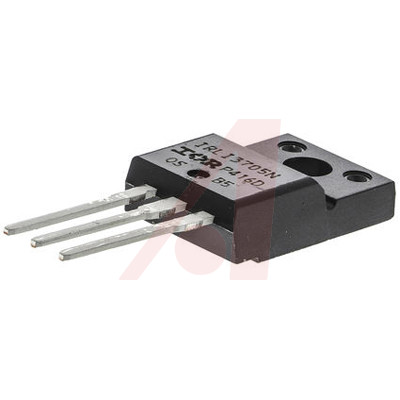

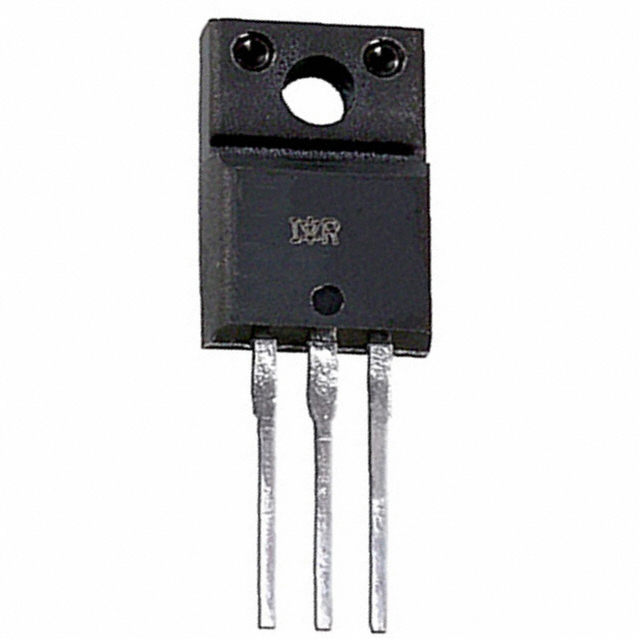

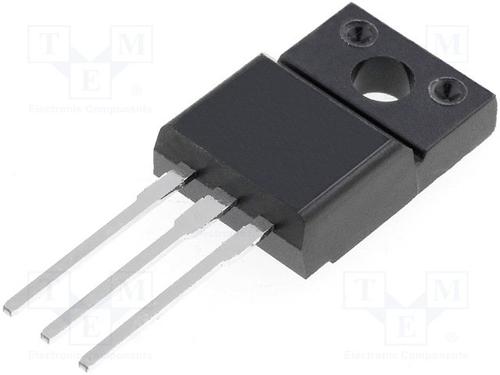

INTERNATIONAL RECTIFIER IRLI3705NPBF 场效应管, N 通道, MOSFET, 55V, 52A TO-220FP 新
**N-Channel Power MOSFET 50A to 59A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
得捷:
IRLI3705N - 12V-300V N-Channel P
e络盟:
INTERNATIONAL RECTIFIER IRLI3705NPBF 场效应管, N 通道, MOSFET, 55V, 52A TO-220FP
艾睿:
Trans MOSFET N-CH 55V 52A 3-Pin3+Tab TO-220FP Tube
Verical:
Trans MOSFET N-CH 55V 52A 3-Pin3+Tab TO-220FP Tube
额定电压DC 57.0 V
额定电流 52.0 A
针脚数 3
漏源极电阻 10 mΩ
极性 N-Channel
耗散功率 58 W
产品系列 IRLI3705N
阈值电压 2 V
漏源极电压Vds 55 V
漏源击穿电压 55 V
连续漏极电流Ids 52.0 A
上升时间 140 ns
隔离电压 2 kV
输入电容Ciss 3600pF @25VVds
额定功率Max 58 W
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
