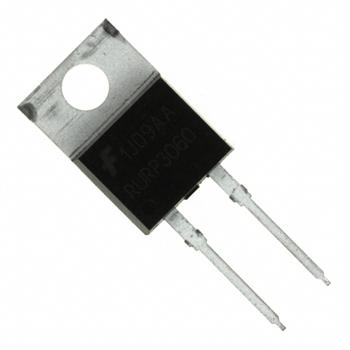

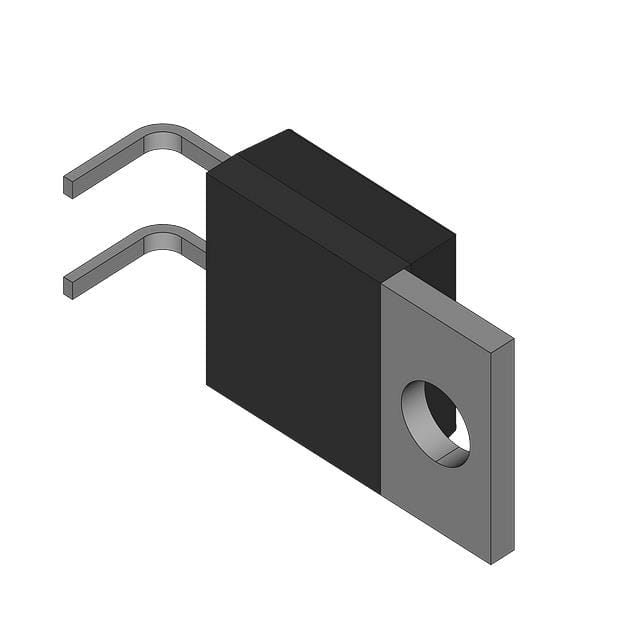

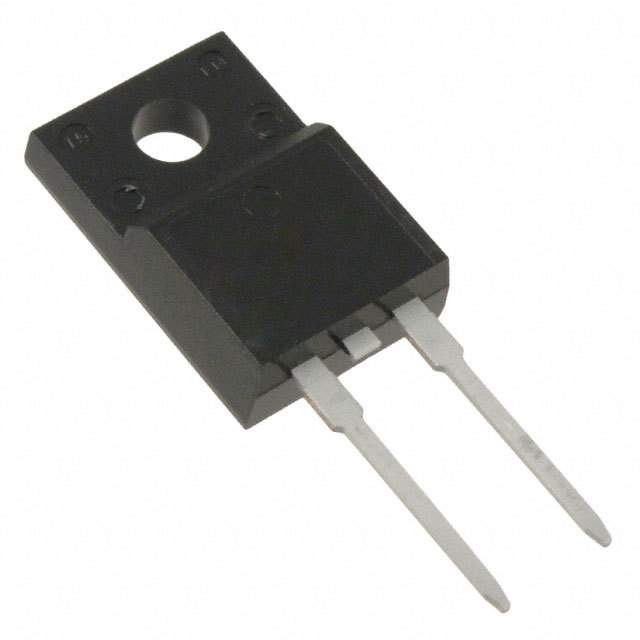

ISL9R1560PF2

10A 至 80A，Fairchild Semiconductor### 二极管和整流器，Fairchild Semiconductor无论您是进行新设计、还是采购，Fairchild 都可为您提供行业标准二极管和整流器、小信号二极管、Schottky 和 Zener 二极管。 部件提供最佳质量、功能和封装选项组合。

General Description

The is a Stealth™ diode optimized for low loss performance in high frequency hard switched applications. The Stealth™ family exhibits low reverse recovery current IRMREC and exceptionally soft recovery under typical operating conditions.

This device is intended for use as a free wheeling or boost diode in power supplies and other power switching applications. The low IRMRECand short taphase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the Stealth™ diode with an SMPS IGBT to provide the most efficient and highest power density

design at lower cost.

Formerly developmental type TA49410.

Features

• Soft Recovery . . . . . . . . . . . . . . . . . . . . . . tb / ta > 1.2

• Fast Recovery. . . . . . . . . . . . . . . . . . . . . . . trr < 30ns

• Operating Temperature. . . . . . . . . . . . . . . . . . 150oC

• Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . 600V

• Internally Isolated . . . . . . . . . . . . . . . . . . . . . . . . 1kV

• Avalanche Energy Rated

Applications

• Switch Mode Power Supplies

• Hard Switched PFC Boost Diode

• UPS Free Wheeling Diode

• Motor Drive FWD

• SMPS FWD

• Snubber Diode
