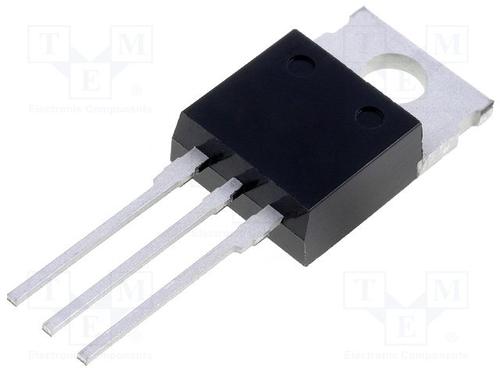

INTERNATIONAL RECTIFIER IRF1010EPBF 场效应管, N 通道, MOSFET, 60V, 84A TO-220AB 新
**N-Channel Power MOSFET 80A to 99A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
艾睿:
Trans MOSFET N-CH 60V 84A 3-Pin3+Tab TO-220AB Tube
Verical:
Trans MOSFET N-CH 60V 84A 3-Pin3+Tab TO-220AB Tube
额定电压DC 60.0 V
额定电流 84.0 A
针脚数 3
漏源极电阻 12 mΩ
极性 N-Channel
耗散功率 200 W
产品系列 IRF1010E
阈值电压 4 V
输入电容 3210pF @25V
漏源极电压Vds 60 V
漏源击穿电压 60 V
栅源击穿电压 ±20.0 V
连续漏极电流Ids 84.0 A
上升时间 78.0 ns
输入电容Ciss 3210pF @25VVds
额定功率Max 200 W
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
高度 16.51 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRF1010EPBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
STP60NF06L 意法半导体 | 功能相似 | IRF1010EPBF和STP60NF06L的区别 |
IRFZ14PBF 威世 | 功能相似 | IRF1010EPBF和IRFZ14PBF的区别 |
PHP52N06T,127 恩智浦 | 功能相似 | IRF1010EPBF和PHP52N06T,127的区别 |
