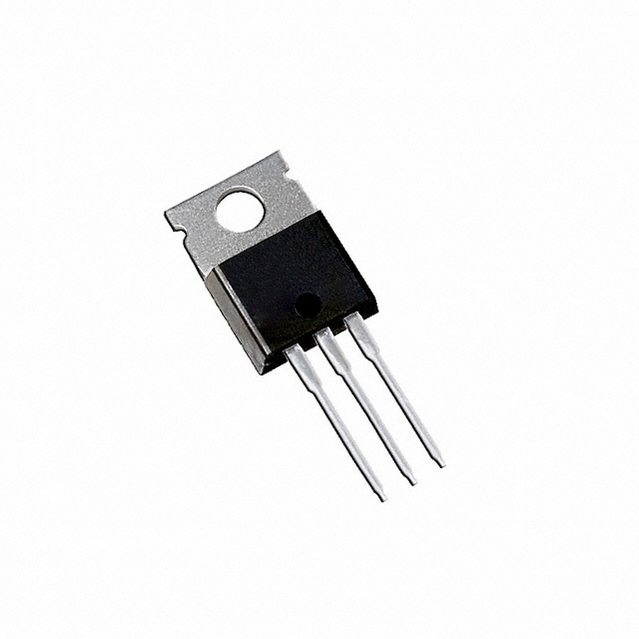

INTERNATIONAL RECTIFIER IRF1404ZPBF 场效应管, N 通道, MOSFET, 40V, 190A, TO-220AB 新
Specifically designed for Automotive applications, ID = 75A this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low onresistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.- .
- *Features:**
* Advanced Process Technology
* Ultra Low On-Resistance
* 175°C Operating Temperature
* Fast Switching
* Repetitive Avalanche Allowed up to Tj Max.
* Lead-Free
额定电压DC 40.0 V
额定电流 75.0 A
针脚数 3
漏源极电阻 0.0037 Ω
极性 N-Channel
耗散功率 220 W
产品系列 IRF1404Z
阈值电压 4 V
输入电容 4340pF @25V
漏源极电压Vds 40 V
漏源击穿电压 40 V
连续漏极电流Ids 190 A
上升时间 110 ns
输入电容Ciss 4340pF @25VVds
额定功率Max 200 W
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
高度 9.02 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
IRF1404ZPBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
STP200NF04 意法半导体 | 功能相似 | IRF1404ZPBF和STP200NF04的区别 |
IRFZ14PBF 威世 | 功能相似 | IRF1404ZPBF和IRFZ14PBF的区别 |
STP100NF04 意法半导体 | 功能相似 | IRF1404ZPBF和STP100NF04的区别 |
