INA321E/250G4

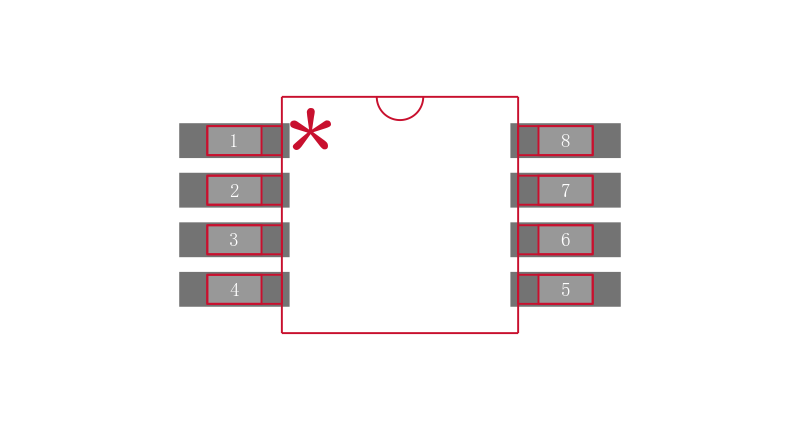

TEXAS INSTRUMENTS  INA321E/250G4  仪器放大器, 1个放大器, 500 µV, 0.04 V/µs, 500 kHz, 2.7V 至 5.5V, MSOP

The is a MicroPower single-supply CMOS Instrumentation Amplifier with rail-to-rail output. It offers wide-range, single-supply, as well as bipolar-supply operation. The INA321 family provides low-noise amplification of differential signals with MicroPower current consumption of 40µA. When shutdown, the INA321 has a quiescent current of less than 1µA. Returning to normal operations within nanoseconds, the shutdown feature makes the INA321 optimal for low-power battery or multiplexing applications. Configured internally for 5V/V gain, the INA321 offers exceptional flexibility with user-programmable external gain resistors. The INA321 reduces common-mode error over frequency and with CMRR remaining high up to 3kHz, line noise and line harmonics are rejected. The low-power design does not compromise on bandwidth or slew rate, making the INA321 ideal for driving sampling analog-to-digital A/D converters as well as general-purpose applications.

.

High gain accuracy of G=5, 0.02%, 2ppm/°C

.

Gain set with external resistors

.

10pA Low bias current

.

-0.02V V+ Rail-to-rail output swing

.

40µA/channel Low quiescent current

.

<1µA Shut down current

.

Green product and no Sb/Br
