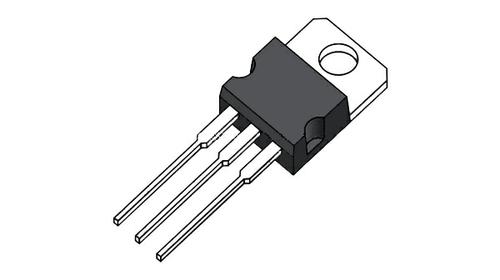

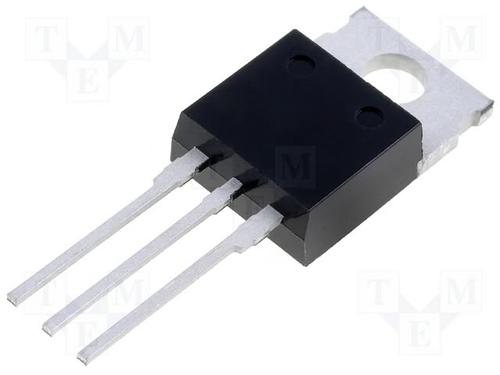

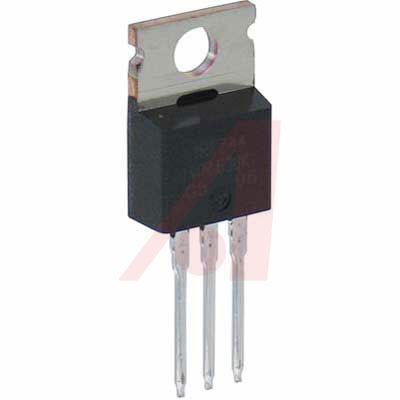

IRFB4110PBF

INTERNATIONAL RECTIFIER  IRFB4110PBF  场效应管, MOSFET, N沟道

"The new IRFB4110 75V MOSFETs are designed to shrink circuit size and increase power density in high power server AC-DC switch-mode power supplies SMPS with 12V output or in 48V rail ORing circuits. The new 100V devices suit high power flyback secondary rectification or offer enhanced primary-side efficiency in high power telecom isolated 48V DC-DC converters. In addition, the new MOSFETs can be used in stepper motor and brushless DC motor drive applications.

The IRFB4110PbF is a 100V MOSFET with 4.0mOhm maximum device on-resistance, and can slash component count in half, reducing PCB area and reducing heat sink size. "

.

*Applications**

* High Efficiency Synchronous Rectification in SMPS

* Uninterruptible Power Supply

* High Speed Power Switching

* Hard Switched and High Frequency Circuits

**Benefits**

* Improved Gate, Avalanche and Dynamic dv/dt Ruggedness

* Fully Characterized Capacitance and Avalanche SOA

* Enhanced body diode dV/dt and dI/dt Capability"
