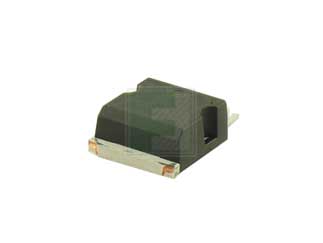

Trans MOSFET N-CH 150V 41A 3Pin2+Tab D2PAK Tube
**N-Channel Power MOSFET 40A to 49A, Infineon**
The Infineon range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages. And form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
艾睿:
Trans MOSFET N-CH 150V 41A 3-Pin2+Tab D2PAK Tube
Allied Electronics:
IRFS41N15DPBF N-channel MOSFET Transistor, 41 A, 150 V, 3-Pin D2PAK
Verical:
Trans MOSFET N-CH 150V 41A 3-Pin2+Tab D2PAK Tube
额定电压DC 150 V
额定电流 41.0 A
漏源极电阻 0.045 Ω
极性 N-Channel
耗散功率 3.1 W
产品系列 IRFS41N15D
阈值电压 5.5 V
输入电容 2520pF @25V
漏源极电压Vds 150 V
漏源击穿电压 150 V
连续漏极电流Ids 41.0 A
上升时间 63.0 ns
输入电容Ciss 2520pF @25VVds
额定功率Max 3.1 W
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.67 mm
高度 4.83 mm
封装 TO-263-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRFS41N15DPBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
STB75NF20 意法半导体 | 功能相似 | IRFS41N15DPBF和STB75NF20的区别 |
STB35NF10T4 意法半导体 | 功能相似 | IRFS41N15DPBF和STB35NF10T4的区别 |
