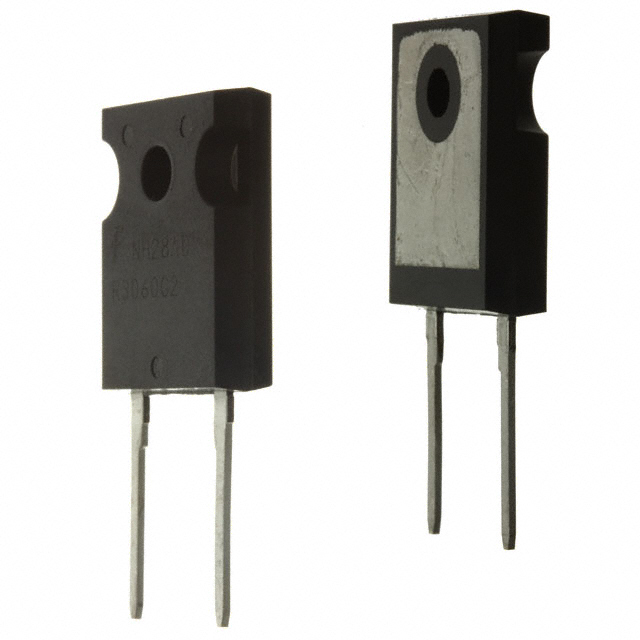

FAIRCHILD SEMICONDUCTOR ISL9R3060G2 快速/超快功率二极管, 单, 600 V, 30 A, 2.4 V, 45 ns, 325 A
The is a STEALTH™ Diode optimized for low loss performance in high frequency hard switched applications. The STEALTH™ family exhibits low reverse recovery current Irr and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free-wheeling or boost diode in power supplies and other power switching applications. The low Irr and short ta phase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the STEALTH™ diode with an SMPS IGBT to provide the most efficient and highest power density design.
- .
- Avalanche energy rated
- .
- High reliability
- .
- 36ns at IF = 30A Stealth recovery trr
额定电压DC 600 V
额定电流 30.0 A
电容 120 pF
输出电流 ≤30.0 A
正向电压 2.4V @30A
极性 Standard
热阻 0.75℃/W RθJC
反向恢复时间 45 ns
正向电流 30 A
最大正向浪涌电流（Ifsm） 325 A
正向电压Max 2.4 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 TO-247-2
长度 15.8 mm
宽度 4.82 mm
高度 20.8 mm
封装 TO-247-2
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Motor Drive & Control, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
