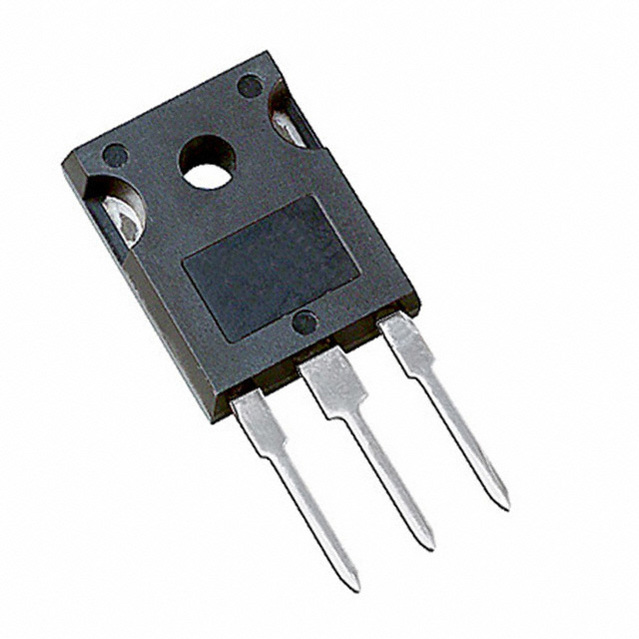

Trans IGBT Chip N-CH 600V 31A 3Pin3+Tab TO-247AC
**Co-Pack IGBT up to 20A, Infineon**
Isolated Gate Bipolar Transistors IGBT from Infineon provide the iser with a comprehensive range of options to ensure your appplication is covered. High effiency ratings enable this range of IGBTs to be used in a wide variety of applications and can support various switching frequencies thanks to low switching losses.
得捷:
IRG4PC30F - 600V FAST 1-8 KHZ DI
艾睿:
Trans IGBT Chip N-CH 600V 31A 3-Pin3+Tab TO-247AC Tube
Allied Electronics:
600V FAST 1-8 KHZ COPACK IGBT IN A TO-247AC PACKAGE
Verical:
Trans IGBT Chip N-CH 600V 31A 3-Pin3+Tab TO-247AC Tube
DeviceMart:
IGBT W/DIODE 600V 31A TO247AC
额定电压DC 600 V
额定电流 31.0 A
耗散功率 100 W
产品系列 IRG4PC30FD
上升时间 26.0 ns
击穿电压集电极-发射极 600 V
反向恢复时间 42 ns
额定功率Max 100 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.87 mm
宽度 5.31 mm
高度 20.7 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
