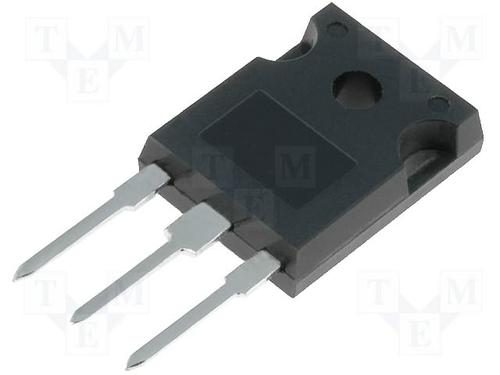

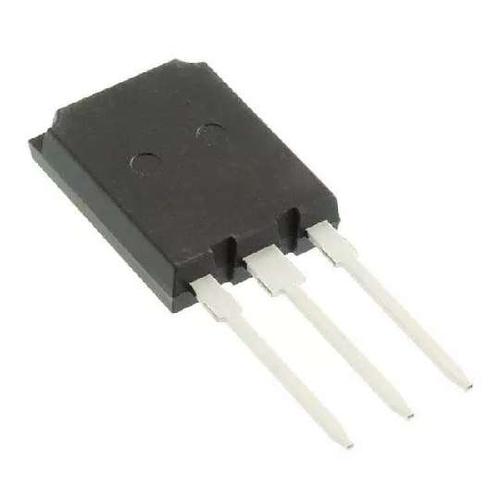

Trans MOSFET N-CH 250V 57A 3Pin3+Tab TO-247AC
Features
Advanced Process Technology
Key Parameters Optimized for PDP Sustain,Energy Recovery and Pass Switch Applications
Low EPULSE Rating to Reduce Power Dissipation in PDP Sustain, Energy Recovery and Pass Switch Applications
Low QG for Fast Response
High Repetitive Peak Current Capability for Reliable Operation
Short Fall & Rise Times for Fast Switching
175°C Operating Junction Temperature for Improved Ruggedness
Repetitive Avalanche Capability for Robustness and Reliability
额定电压DC 250 V
额定电流 57.0 A
通道数 1
极性 N-Channel
耗散功率 360 W
产品系列 IRFP4332
输入电容 5.86 nF
栅电荷 150 nC
漏源极电压Vds 250 V
连续漏极电流Ids 57.0 A
输入电容Ciss 5860pF @25VVds
额定功率Max 360 W
安装方式 Through Hole
引脚数 3
封装 TO-247-3
宽度 5.31 mm
封装 TO-247-3
产品生命周期 Active
包装方式 Rail, Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
IRFP4332PBF International Rectifier 国际整流器 | 当前型号 | 当前型号 |
STW52NK25Z 意法半导体 | 功能相似 | IRFP4332PBF和STW52NK25Z的区别 |
