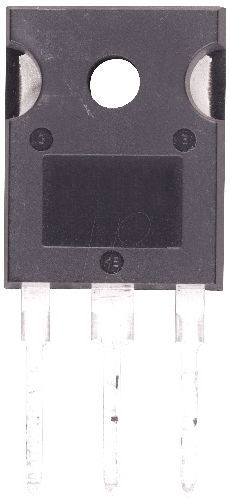

INTERNATIONAL RECTIFIER IRG4PH50KDPBF 晶体管, 单路, IGBT, 1.2KV, 45A 新
**Co-Pack IGBT over 21A, Infineon**
Isolated Gate Bipolar Transistors IGBT from Infineon provide the iser with a comprehensive range of options to ensure your appplication is covered. High effiency ratings enable this range of IGBTs to be used in a wide variety of applications and can support various switching frequencies thanks to low switching losses.
得捷:
SHORT CIRCUIT RATED ULTRAFAST IG
e络盟:
晶体管, 单路, IGBT, 1.2KV, 45A
艾睿:
Trans IGBT Chip N-CH 1.2KV 45A 3-Pin3+Tab TO-247AC Tube
Allied Electronics:
á1200V ULTRAFAST 4-20 KHZ COPACK IGBT IN A TO-247AC PACKAGE
Verical:
Trans IGBT Chip N-CH 1.2KV 45A 3-Pin3+Tab TO-247AC Tube
额定电压DC 1.20 kV
额定电流 45.0 A
针脚数 3
极性 N-Channel
耗散功率 200 W
产品系列 IRG4PH50KD
上升时间 100 ns
击穿电压集电极-发射极 1200 V
热阻 0.64℃/W RθJC
反向恢复时间 90 ns
额定功率Max 200 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.87 mm
高度 20.7 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
