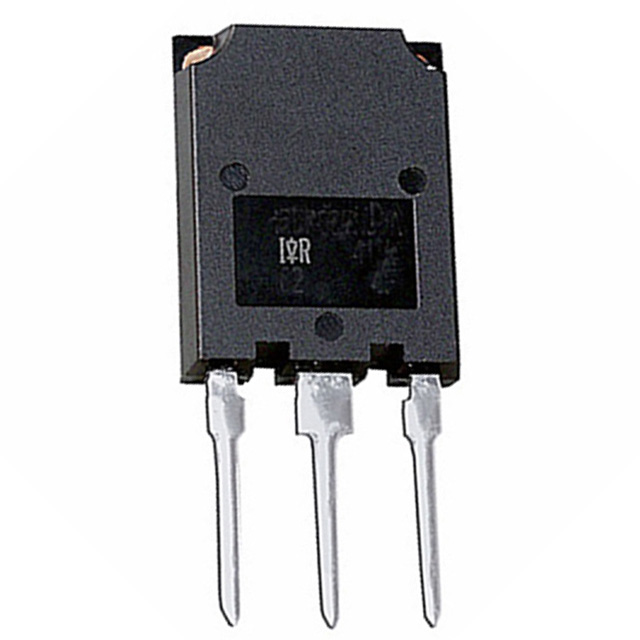

INTERNATIONAL RECTIFIER IRGPS40B120UPBF IGBT Single Transistor, 80A, 3.5V, 595W, 1.2kV, TO-274AA, 3Pins
**Single IGBT over 21A, Infineon**
optimized IGBTs designed for medium frequency applications with fast response and provide the user with the highest efficiency available. utilizing FRED diodes optimized to provide the best performance with IGBT"s
得捷:
ULTRAFAST CO-PACK IGBT W/ULTRAFA
艾睿:
Trans IGBT Chip N-CH 1.2KV 80A 3-Pin3+Tab TO-274AA Tube
Allied Electronics:
1200V ULTRAFAST 8-25 KHZ SINGLE IGBT INA TO-274AA PACKAGE
DeviceMart:
IGBT ULT FAST 1200V 80A SUPER247
额定电压DC 1.20 kV
额定电流 80.0 A
极性 N-Channel
耗散功率 595 W
产品系列 IRGPS40B120U
上升时间 25 ns
击穿电压集电极-发射极 1200 V
额定功率Max 595 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 595000 mW
安装方式 Through Hole
引脚数 3
封装 Super-247-3
长度 16.1 mm
高度 20.8 mm
封装 Super-247-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
