INA2132UA/2K5E4

Dual, Low Power, Single-Supply Difference Amplifier 14-SOIC -40℃ to 85℃

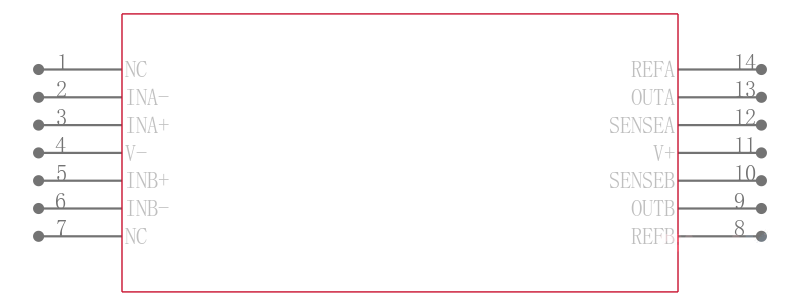

DESCRIPON

The INA2132 is a dual low power, unity-gain differ ence amplifier offering excellent value at very low cost. Each channel consists of a precision op amp with a laser-trimmed precision resistor network, providing accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The internal op amp’s common-mode range extends to the negative supply—ideal for single-supply applications.

FEATURES

●DESIGNED FOR LOW COST

●LOW QUIESCENT CURRENT:

  160µA per Amplifier

●WIDE POWER SUPPLY RANGE:

  Single Supply: 2.7V to 36V

  Dual Supplies: ±1.35V to ±18V

●LOW GAIN ERROR: ±0.05% max

●LOW NONLINEARITY: 0.001% max

●HIGH CMRR: 90dB

●HIGHLY VERSATILE CIRCUIT

●EASY TO USE

●SO-14 PACKAGE

APPLICATIONS

●DIFFERENTIAL INPUT AMPLIFIER

●INSTRUMENTATION AMPLIFIER BUILDING BLOCK

●UNITY-GAIN INVERTING AMPLIFIER

●G = 1/2 AMPLIFIER

●G = 2 AMPLIFIER

●SUMMING AMPLIFIER

●DIFFERENTIAL CURRENT RECEIVER

●VOLTAGE-CONTROLLED CURRENT SOURCE

●BATTERY-POWERED SYSTEMS

●GROUND LOOP ELIMINATOR
