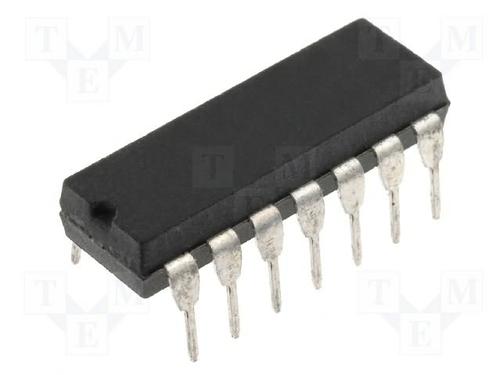

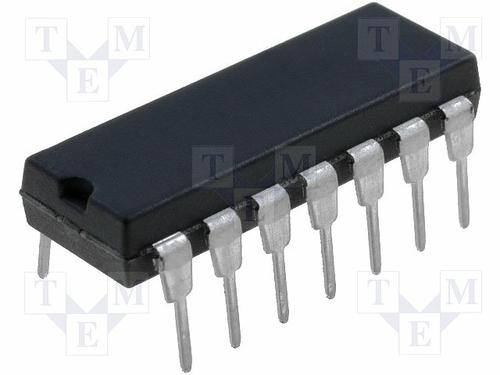

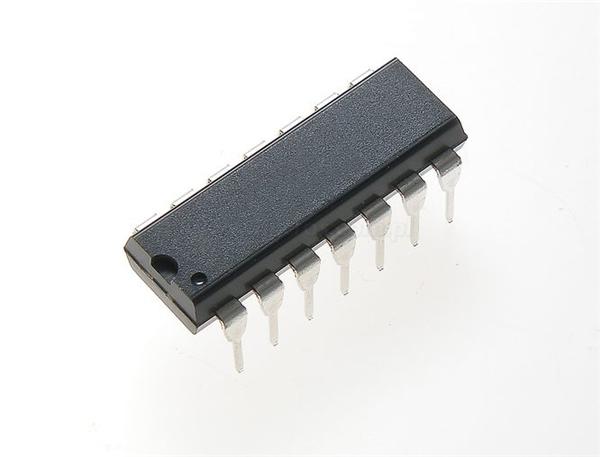

IR2156PBF 照明镇流器驱动器, 半桥, 16.5V, 14针 PDIP封装
Description
The IR2156 incorporates a high voltage half-bridge gate driver with a programmable oscillator and state
diagram to form a complete ballast control IC. The IR2156 features include programmable preheat and
run frequencies, programmable preheat time, programmable dead-time, and programmable over-current protection. Comprehensive protection features such as protection from failure of a lamp to strike,filament fail ures, as well as an automatic restart function, have been included in the design. The IR2156 is available in both 14 lead PDIP and 14 lead SOIC packages.
Features
•Ballast control and half-bridge driver in one IC
•Programmable preheat frequency
•Programmable preheat time
•Internal ignition ramp
•Programmable over-current threshold
•Programmable run frequency
•Programmable dead time
•DC bus under-voltage reset
•Shutdown pin with hysteresis
•Internal 15.6V zener clamp diode on Vcc
•Micropower startup 150µA
•Latch immunity and ESD protection
•Also available LEAD-FREE PbF
频率 36kHz ~ 44kHz
电源电压DC 10.0V min
输出接口数 2
输出电压 25 V
输出电流 500 mA
供电电流 10 mA
耗散功率 1.7 W
产品系列 IR2156
上升时间 150 ns
输出电流Max 500 mA
下降时间 100 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1800 mW
电源电压 10.5V ~ 16.5V
电源电压Max 25 V
电源电压Min 10 V
安装方式 Through Hole
引脚数 14
封装 DIP-14
封装 DIP-14
工作温度 -25℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
