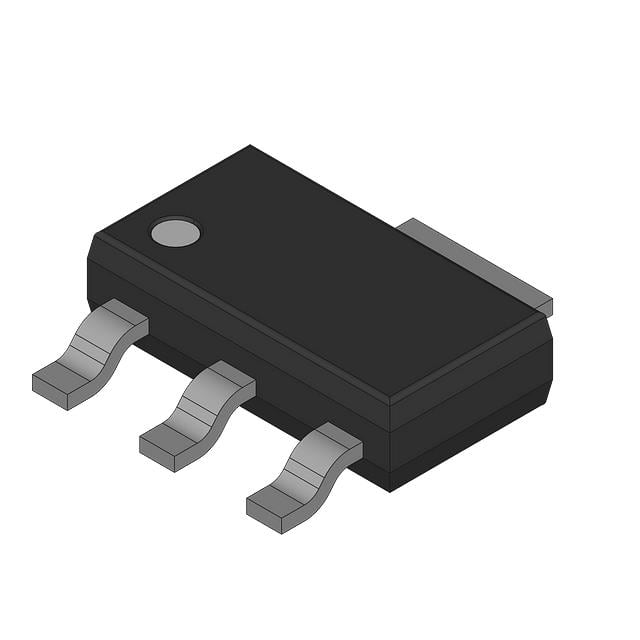

Infineon IFX1117MEVHTMA1 LDO 稳压器, 可调输出, 3.23 → 3.365 V输出, 1A最大输出
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
得捷:
IC REG LIN POS ADJ 1A SOT223-4
欧时:
Infineon IFX1117MEVHTMA1 LDO 稳压器, 可调输出, 3.23 → 3.365 V输出, 1A最大输出
贸泽:
LDO Voltage Regulators Voltage Regulator
e络盟:
LDO 稳压器, 可调, 4.55 V至15 V输入, 1.3 V压差输出, 1.25 V/1 A 输出, SOT-223-4
艾睿:
Stable power is ideal for better processing this LDO IFX1117MEVHTMA1 linear regulator developed by Infineon Technologies will help do so. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 1@100mA|1.05@500mA|1.1@800mA|1.3@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. It only needs a voltage of at least 4.55 V while not exceeding 15 V to effectively power your circuit. With an adjustable output, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.4% and line regulation of 0.2%. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 1.1@100mA|1.15@500mA|1.2@800mA|1.4@1A V.
TME:
Voltage regulator; LDO, linear, adjustable; 1.25÷15V; 1A; SOT223
Verical:
LDO Regulator Pos 1A 4-Pin3+Tab SOT-223 T/R
输出接口数 1
输出电压 1.25V ~ 13.8V
输出电流 1 A
供电电流 5 mA
针脚数 4
跌落电压 1.1V @800mA,1V @100mA,1.3V @1A,1.05V @500mA
输入电压Max 15 V
输入电压Min 4.55 V
输出电压Max 13.6 V
输出电压Min 1.25 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±2 %
输入电压 15 V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 TO-261-4
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
