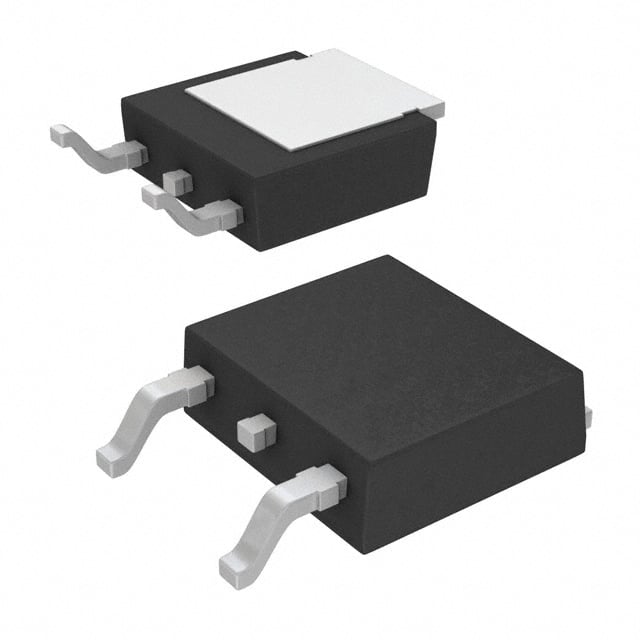

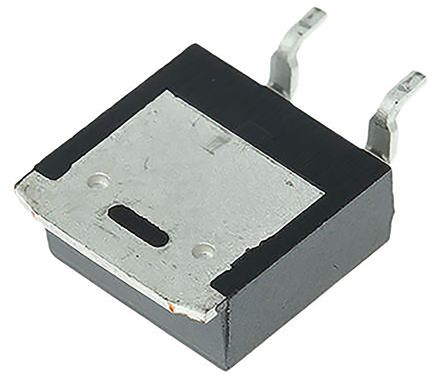

INFINEON IFX25001TFV50ATMA1 固定电压稳压器, LDO, 5.5V至40V, 250mV压差, 5V输出, 400mA输出, TO-252-3
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
立创商城:
正 Vin=40V Vout=5V 400mA 60dB@100Hz
得捷:
IC REG LINEAR 5V 400MA TO252-3
欧时:
Infineon IFX25001TFV50ATMA1 LDO 稳压器, 5 V输出, 400mA最大输出, 4%精确度, 5.5 → 45 V输入, 3引脚
贸泽:
低压差稳压器 Low Dropout Voltage Regulator
e络盟:
固定电压稳压器, LDO, 5.5V至40V, 250mV压差, 5V输出, 400mA输出, TO-252-3
艾睿:
Use this LDO IFX25001TFV50ATMA1 linear regulator from Infineon Technologies to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.25@250mA V. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.4 A. This will operate at a minimum voltage of 5.5 V and a maximum voltage of 40 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 50mV and line regulation of 25mV your circuit is capable of maintaining a constant voltage level at your output. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.5@250mA V.
安富利:
LDO Regulator Pos 5V 0.4A 3-Pin TO-252 T/R
TME:
Voltage regulator; LDO, linear, fixed; 5V; 0.4A; DPAK; SMD
Verical:
LDO Regulator Pos 5V 0.4A 3-Pin2+Tab DPAK T/R
Newark:
# INFINEON IFX25001TFV50ATMA1 Fixed LDO Voltage Regulator, 5.5V to 40V, 250mV Dropout, 5Vout, 400mAout, TO-252-3
输出接口数 1
输出电压 5 V
输出电流 400 mA
针脚数 3
静态电流 0.1 mA
跌落电压 250 mV
输入电压Max 40 V
输入电压Min 5.5 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 5.5V ~ 40V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.5 mm
宽度 6.22 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Communications & Networking, Medical, Automation & Process Control, 医用, 建筑自动化, 通信与网络, HVAC, 自动化与过程控制, Consumer Electronics, Building Automation, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
